LED TRACK LIGHT · TR0103 SERIES
VUE-S High CRI Track Light
145lm/W · Ra90 · 20W/25W/32W — built for retail, exhibition, and commercial display spaces.
Home / Product / LED Track Light / VUE-S
VUE-S TR0103 high CRI LED track light in black finish for retail stores — 15/24/36° optics.
VUE-S LED Track Light
TR0103 series · 145lm/W · CRI90 · 20W/25W/32W
The VUE-S TR0103 is a high CRI LED track light for retail stores, delivering up to 145lm/W efficacy and >Ra90 color rendering for vivid, true-to-life merchandise display. Built for supermarkets, apparel shops and commercial display spaces.
It offers a maximum power of 32W and up to 4500lm, making this high lumen track light for shops ideal for spaces needing bright, accurate, and reliable lighting, plus a 5-year warranty.
- 145lm/W high efficacy, CRI >Ra90
- 20W / 25W / 32W, up to 4500lm
- 15°/24°/36° beam angle, White/Black finishing
- 3-phase 4-wire track adapter, 5-year warranty
Datasheet
Select a model to view full specifications
| LC-TR0103-20W | |
|---|---|
| Wattage | 20W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2850lm ±5% |

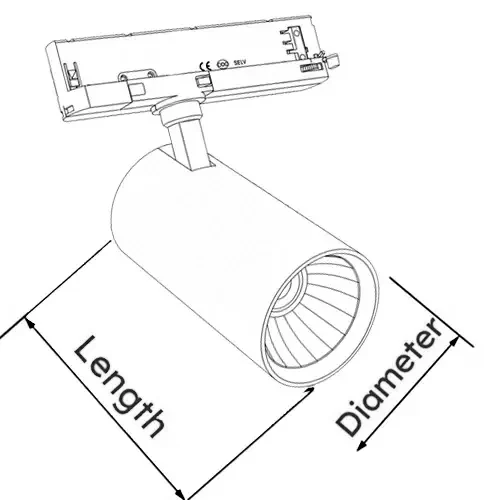

| Size (Ø x H) | Ø72*123mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-TR0103-25W | |
|---|---|
| Wattage | 25W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 3550lm ±5% |
| Size (Ø x H) | Ø80*131mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-TR0103-32W | |
|---|---|
| Wattage | 32W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 4500lm ±5% |
| Size (Ø x H) | Ø90*141mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
Why VUE-S for Retail Spaces
Maximum efficacy from a fixed-beam track light
VUE-S TR0103 Fixed-Beam Optics at 145 lm/W
The VUE-S TR0103 is built for projects where every watt must pay back: a fixed 15/24/36° optic tuned for up to 145 lm/W and CRI >Ra90, so apparel and fresh-food displays look vivid while energy bills drop. The math is direct — the 32W head delivers 4500lm, roughly the output of 250W of old halogen track heads, and it belongs in a complete high CRI retail lighting solution that combines track accent, linear and downlight fixtures in one plan.
TR0103 Beam Angles 15° to 36° for Retail Displays
Beam choice decides the result more than wattage does. Industry guides converge on the same rule:
- 15° beam — jewelry and focal displays: precisely projects light to create a dramatic, eye-catching effect for star products.
- 24–36° beam — mannequins and product shelving: balanced and soft light providing even illumination for shelves.
- Wider floods — ambient fill: only for general background fill when accent is not needed.
TR0103 ships exactly that 15/24/36° set, so one series covers focal display, shelf wash and general accent without mixing fixture families.
VUE-S TR0103 Color Fidelity and DALI Control
Color fidelity is the second half of retail light: track-light guides recommend CRI 90 or higher for merchandise, which is what the Ra90 engine here delivers. This DALI dimmable track spotlight ships TRIAC and 0-10V as standard with DALI on request — DALI being the official DALI Alliance lighting control standard with a standardized dimming curve matched to human-eye sensitivity, so VUE-S drops into KNX, Casambi, Lutron and DALI-2 building systems.
For fixed general lighting choose VUE-S; if one fixture must cover changing displays, see the VARO-Z zoomable track light with tool-free 15–60° zoom — and if you need a lower-wattage sibling in the same fixed-beam family, compare the VUE-F fixed-beam track light starting at 15W.
Beam spread at 3m mounting height (Ø = 2 × h × tan(θ/2))
| Model | Beam | Efficacy | Best for |
|---|---|---|---|
| VUE-S TR0103 | Fixed 15/24/36° | 145 lm/W | High-bay retail, max output per watt |
| VUE-F TR0102 | Fixed 15/24/36° | 145 lm/W | Same family, lower 15W entry |
| VARO-Z ZT01 | Zoom 15–60° | 145 lm/W | Museums, changing displays |
FAQ
Quick answers about the TR0103 series
High Efficiency and Eco-Friendly
This CRI90 track light delivers up to 145 lm/W, producing a powerful 2900 lm of brightness with just 20W of power. This represents an energy efficiency increase of over 30% compared to similar products, leading to significant savings on your electricity bills.
Modular Design for Sustainability
Featuring a modular design, this track light allows for easy replacement or upgrades of components. This not only extends the product's lifespan and reduces waste but also effectively lowers carbon emissions, helping your business contribute to its sustainability goals.
Narrow Beam LED Track Lights (10°-25°)
Narrow 10°–25° beams precisely project light to create a visual focal point. Whether for a museum's precious collection or a retail store's star products, narrow beams create a dramatic and eye-catching effect.
Medium Beam (30°-60°)
Balanced and soft light, illuminating every brilliant detail. This beam is the ideal choice for retail stores and restaurants. It provides soft, even illumination, making the space feel bright and comfortable, and perfectly balancing atmosphere with function. The TR0103 ships exactly this range as 15/24/36° fixed optics.
Yes, we have well-developed solutions for specialized colors for meat, fish and vegetables. See the FLES-M fresh food LED bar light for meat and produce cases.
Illuminate Freshness, Ignite Cravings
Our LED fresh produce lights use advanced color-blending technology to create stunning lighting effects for your products.
- Boost Product Appeal: professionally customized color schemes for meat, vegetables, bread, and seafood areas.
- Enhance the Look of Freshness: make meat look rich and red, leafy greens vibrant and crisp, bread tempting golden brown, and seafood glisten under clear light.
- Drive Sales: specialized lighting design beautifies your products and stimulates customer desire to buy.
Absolutely. In addition to its onboard DIP control, it supports TRIAC, 0-10V, and DALI dimming (on request), fully compatible with most smart lighting infrastructures, including KNX, Casambi, Lutron, and DALI 2.
Choose VUE-S when the layout is fixed and you want the highest lumens per watt: its 15/24/36° optics are tuned for the full 145 lm/W output. Choose a zoomable track light when one fixture must cover changing displays, artwork rotations, or seasonal layouts — the zoom range replaces several fixed fixtures.
Yes, with up to 4500 lumens at 145 lm/W, TR0103 is powerful enough for supermarkets, hotels, and high-bay commercial spaces. Combined with its adjustable optics, it works perfectly in spaces 3-5 meters high.
It comes with a standard 3-phase 4-wire track adapter, compatible with Global Trac (Nordic), Eutrac, Stucchi, and most European/Australian commercial track systems. Need compatibility with special systems? Let us know — we can customize adapters.
Standard warranty is 3-5 years with spare drivers and LED modules. For international clients, we offer spare drivers/LED modules with each shipment and remote troubleshooting support via video or drawings.

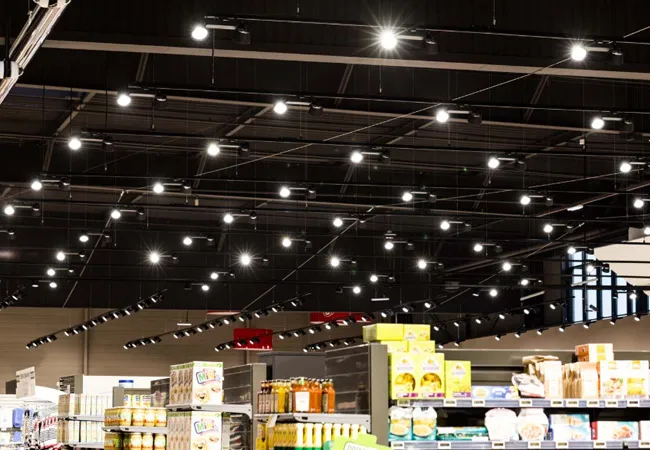

Application
