FRESH FOOD LED TRACK LIGHT · TR0102 SERIES
VUE-F Fresh Food Track Light
Meat / bakery / produce spectra · Ra90 · 15W/25W/32W — built for supermarket fresh-food counters and butcher displays.
Home / Product / Led Track Light / VUE-F
VUE-F TR0102 fresh food LED track light in black finish for supermarkets — meat, bakery and produce spectra.
VUE-F Fresh Food LED Track Light
TR0102 series · meat/bakery/produce spectra · CRI90 · 15W/25W/32W
The VUE-F TR0102 is a fresh food LED track light for supermarkets, using special spectra for meat, bakery and produce zones with >Ra90 rendering and up to 145lm/W efficacy for vivid, appetizing displays.
It offers a maximum power of 32W and up to 4500lm, making this meat display track light ideal for butcher counters, bakery shelves and produce aisles needing bright, accurate light, plus a 5-year warranty.
- 145lm/W high efficacy, CRI >Ra90, food-zone spectra
- 15W / 25W / 32W, up to 4500lm
- 15°/24°/36° beam angle, White/Black finishing
- 3-phase 4-wire track adapter, 5-year warranty
Datasheet
Select a model to view full specifications
| LC-TR0102-15W | |
|---|---|
| Wattage | 15W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2050lm ±5% |

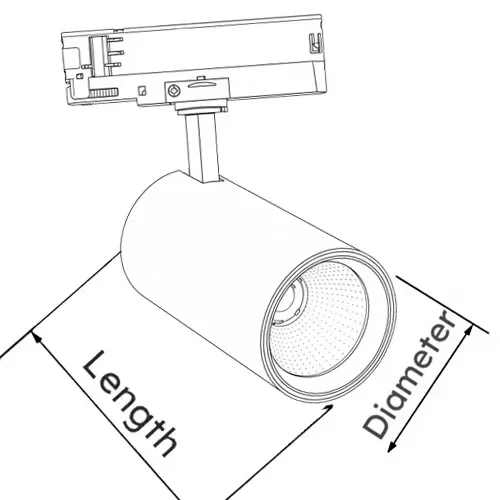

| Size (Ø x H) | Ø60 × H130 mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-TR0102-25W | |
|---|---|
| Wattage | 25W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 3550lm ±5% |
| Size (Ø x H) | Ø75*H161 mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-TR0102-32W | |
|---|---|
| Wattage | 32W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 4500lm ±5% |
| Size (Ø x H) | Ø85*H160 mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
Why VUE-F for Fresh Food Counters
Zone spectra on a track spotlight supermarkets already use
VUE-F Special Spectra for Fresh Food Counters
Special spectra for meat, bakery, produce and seafood with CRI >Ra90 at up to 145 lm/W — the VUE-F TR0102 is built for fresh-food zones where appearance sells: special spectra for meat, bakery, produce and seafood counters with CRI >Ra90, tuned for up to 145 lm/W so red meat looks rich, bread looks freshly baked and greens look crisp — while energy bills drop. The math is direct — the 32W head delivers 4500lm over open counters, and it belongs in a retail lighting solution for supermarkets that combines track accent, linear and downlight fixtures in one plan.
Each zone wants its own spectrum, not one generic white: pink-red keeps meat red with white fat, warm gold gives bakery an oven-fresh look, neutral fresh tones suit produce, and cool white suits seafood on ice.
- 15° beam for butcher feature cuts — precise accent for premium cuts
- 24–36° for bakery shelves and produce aisles — even wash for shelves and long counters
TR0102 ships exactly that 15/24/36° set, so one bakery fresh food track spotlight family covers focal display, shelf wash and counter accent without mixing fixture families, which is why track lighting suits retail stores that rearrange displays without rewiring.
Color fidelity backs the spectra up: fresh-food guides recommend CRI 90 or higher around food, which is what the Ra90 engine here delivers without the grey-meat effect of cheap white LEDs. This VUE-F track spotlight ships TRIAC and 0-10V as standard with DALI on request — DALI being the official DALI Alliance lighting control standard with a standardized dimming curve matched to human-eye sensitivity, so morning low-traffic dimming and peak-hour full brightness run on one system.
For open fresh-food counters choose VUE-F with zone spectra; for general merchandise aisles with plain white light, see the VUE-S high CRI track light for general retail in the same fixed-beam family — and for inside cold cabinets and display cases rather than overhead track, check the bar-light alternative in the FAQ below.
One TR0102 family covers all four fresh-food zones — match the spectrum to the counter
| Model | Form | Spectra | Best for |
|---|---|---|---|
| VUE-F TR0102 | Track spotlight | Meat / bakery / produce / seafood | Open counters & aisles |
| FLES-M | Linkable bar light | Pink meat + optional colors | Inside cold cabinets & cases |
| VUE-S TR0103 | Track spotlight | General CRI90 white light | General merchandise displays |
Size the Light to the Counter
Wattage and beam choices for 3–5m fresh-food halls
Sized for 3m rails over fresh food counters: narrow beams for feature cuts, wider beams for shelves and aisles
TR0102 Wattage Choices for 3–5m Fresh Food Halls
Pick wattage by mounting height and counter depth.
- 15W head 2050lm — low service counters and short-throw spots under 3 meters
- 25W head 3550lm — workhorse for standard 3-meter rails over bakery shelves and produce tables
- 32W head 4500lm — covers 4–5 meter halls and wide island counters where throw eats lumens
One adapter family spans all three, so a hall can mix wattages on a single rail without mixing fixture looks.
TRIAC and 0-10V for morning low-traffic, DALI on request for peak-hour full brightness — fresh-food halls run long hours, so dimming pays: standard TRIAC and 0-10V dimming handle morning low-traffic hours at reduced output, DALI on request ties the counters into the building schedule for peak-hour full brightness, and the aimable heads point at the product — not the floor — after every display change. No rewiring, no ladder work on the rail itself.
FAQ
Quick answers about the TR0102 series
Zone spectra plus high efficacy
This fresh food LED track spotlight pairs special meat, bakery, produce and seafood spectra with an ultra-high efficacy of up to 145 lm/W — the 15W head delivers 2050lm, over 30% more efficient than similar products, cutting electricity bills in stores that run lights all day.
Modular design for sustainability
Featuring a modular design, this track light allows for easy replacement or upgrades of components. This not only extends the product's lifespan and reduces waste but also effectively lowers carbon emissions, helping your business contribute to its sustainability goals.
Match the spectrum to the counter, not one generic white — match the spectrum to the counter, not one generic white across the store.
Meat and bakery: warm specialists
Pink-red light keeps beef and lamb red with white fat, while warm gold gives bread and pastries an oven-fresh look that stimulates appetite.
Produce and seafood: neutral to cool
Neutral fresh tones keep leafy greens vibrant and crisp, while cool white makes seafood glisten on ice. One TR0102 family covers all four zones, so a whole fresh-food hall stays visually consistent.
Overhead track spotlight for open counters with 15/24/36° optics — choose by mounting position. The TR0102 is an overhead track spotlight for open butcher counters, bakery shelves and produce aisles, throwing accent light from the rail with 15/24/36° optics.
For light built inside cold cabinets and display cases, see the FLES-M fresh food LED bar light with its IP65 linkable bar form. Many supermarkets use both: track above, bars inside.
Narrow beam (15°): feature cuts and focal displays
Precise accent for butcher feature cuts and premium displays — precise accent light for butcher feature cuts, premium meat displays and promotional ends, creating a visual focal point that draws shoppers in.
Medium beam (24–36°): shelves and aisles
Balanced, even wash for bakery shelves, produce tables and long counter runs. The TR0102 ships exactly this 15/24/36° set, so one series covers focal and wash lighting.
Choose VUE-F for fixed counters with zone spectra at 145 lm/W — choose VUE-F when fresh-food counters stay put and you want zone spectra at the full 145 lm/W output. Choose a zoomable fixture when one light must cover changing displays and seasonal layouts — the VARO-Z zoomable track light with tool-free 15–60° zoom replaces several fixed fixtures.
Absolutely. In addition to its onboard DIP control, it supports TRIAC, 0-10V, and DALI dimming (on request), fully compatible with most smart lighting infrastructures, including KNX, Casambi, Lutron, and DALI 2 — handy for dimming fresh-food halls in the morning and running full brightness at peak hours.
Up to 4500lm at 145lm/W for high-ceiling supermarkets — yes, with an output of up to 4500 lumens and high luminous efficacy (145 lm/W), TR0102 is powerful enough for supermarkets, butcher shops, and high-bay fresh-food halls. Combined with its adjustable optics, it works perfectly in spaces 3-5 meters high.
It comes with a standard 3-phase 4-wire track adapter, compatible with Global Trac (Nordic), Eutrac, Stucchi, and most European/Australian commercial track systems. Need compatibility with special systems? Let us know — we can customize adapters.
Standard warranty is 3-5 years. For international clients, we offer spare drivers/LED modules with each shipment and remote troubleshooting support via video or drawings.
Application
TR0102 over fresh food counters and retail displays
