BLE · WIRELESS DIMMING SOLUTION
BLE Mesh Wireless Dimming Solution for Retail Stores
The BLE mesh wireless dimming solution for retail stores delivers 1–100% flicker-free dimming over a 4000-node BLE Mesh network, cutting energy use by 30% with presence-based scenes for supermarkets, retail chains and warehouses
Explore SolutionWhy Choose BLE Dimming
Smooth Dimming Range
Nodes Per Network
Energy Savings
Payback Period
Core Advantages
Flicker-Free Performance
Our BLE solution redefines visual comfort with a dimming range from 1% to 100%. The transition is exceptionally smooth, eliminating the "stepping" effect found in lower-quality systems.
Massive Network Capacity
Designed for large-scale deployments, our system supports up to 4,000 controlled nodes per network. BLE Mesh technology ensures high-speed response and persistent connectivity.
Rapid Installation
We have streamlined the commissioning process to allow for fast pairing. This enables engineering teams to set up large-scale sites in a fraction of the time required by wired systems.
Intelligent Energy Mgmt
The system supports multiple scene configurations tailored to foot traffic and specific tasks. By adjusting brightness based on real-time human presence, you can save up to 30% energy.
Multi-Terminal Control
Complete control flexibility through handheld remotes, wall panels, mobile APP, and smart control hubs. From immediate on-site adjustments to remote management.
High Return on Investment
The combination of energy savings, reduced maintenance costs and increased operational efficiency delivers a typical ROI period of less than 12 months for most installations.
Zero-Cloud Local Privacy
Our BLE system operates on a local mesh network, requiring no internet or cloud access to function. This ensures your operational data stays completely off-grid, providing maximum privacy protection for your commercial site.
No Wiring Required
Eliminates all complex control wiring requirements compared to traditional DALI systems. Save up to 75% on installation costs and reduce project implementation time from weeks to days, with no disruption to existing operations.

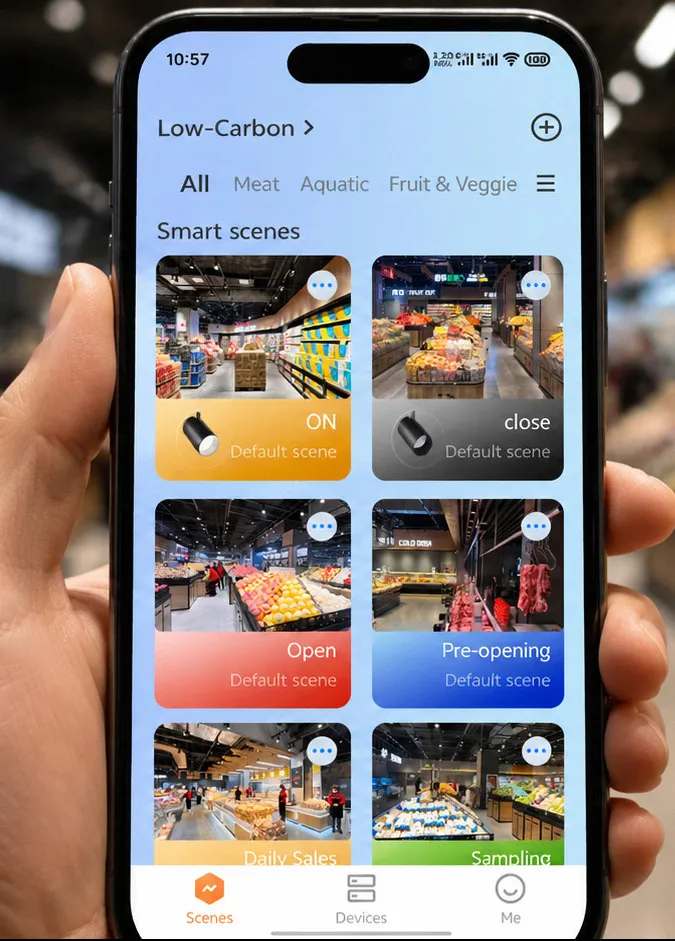

Live Demo

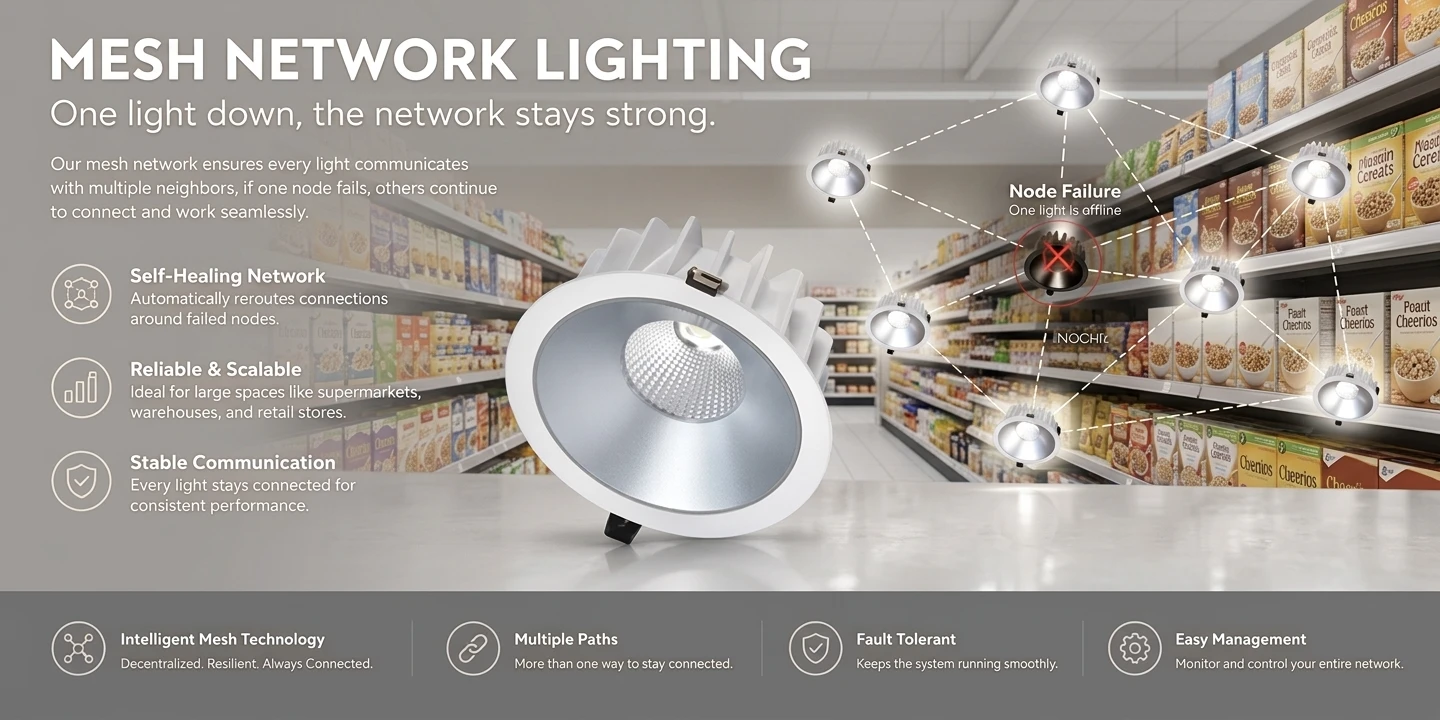

BLE Mesh network architecture: one wireless mesh links track, linear and downlight zones across retail floors
Key Considerations
Smart dimming is the inevitable future of lighting. While the initial investment for a smart system is slightly higher than traditional non-dimmable solutions, it typically offers a payback period of less than 1 year. Through scene-based management, our system achieves over 30% additional energy savings compared to non-dimmable setups, delivering immediate reductions in electricity expenditures.
- 0-10V Systems: These systems are prone to voltage drops over long control distances, which often results in inconsistent brightness across fixtures.
- DALI Systems: Although stable, DALI involves a heavy initial investment for mid-to-small-scale projects (requiring specialized bus gateways, etc.) and relies strictly on manual signal wiring. In regions with high labor costs, this represents a significant capital expenditure.
- Our BLE Advantages: Our BLE dimming system supports 4,000+ nodes and utilizes Bluetooth mesh lighting control to achieve industrial-grade stability with zero node drops.
- Zero Signal-Wiring Costs: The system is operational as long as power is supplied; no additional signal cables are required.
- Flexibility: Reconfiguring layouts is effortless, eliminating the need for expensive secondary construction and labor.
Beyond basic brightness adjustments, our system offers a sophisticated suite of intelligent management tools:
- Rapid Zoning: Supports fast and convenient network grouping for targeted, localized control.
- Scene Presets: Allows users to pre-configure scene modes tailored to specific time periods or foot traffic levels.
- Automated Scheduling: When equipped with a gateway, the system enables automated, timed scene transitions.
- Comfortable Graduations: Supports 0-6 second soft-start and soft-stop transitions. This gradual fade technology creates a more comfortable environment by preventing the sensory shock of abrupt lighting changes.
To ensure maximum client privacy and low-cost deployment, our system utilizes localized control and does not require cloud connectivity. This "off-cloud" approach fully protects commercial data and ensures the client maintains absolute autonomy over the system, independent of external network environments.
The commissioning process is exceptionally streamlined: during grouping, a simple power-cycle operation (e.g., switching on/off twice) allows the system to identify and bind unlinked nodes.
- Security Mechanism: Once bound, nodes cannot be accessed by third parties unless the administrator explicitly unbinds them, ensuring high-level system security. Detailed operational demonstrations are available through our sales representatives.
Our system supports a comprehensive range of interactive controls to suit various user habits, including handheld remotes, wall switches, mobile APPs, and professional touch panels.
Our BLE smart lighting solution is not only more intelligent in function but also engineered to deliver tangible financial savings.
- Zero Wiring, Simple Networking, Intuitive Operation.
- Whether compared to traditional setups or high-end protocols like DALI, our system offers a decisive advantage in operational costs and Return on Investment (ROI).
- Ideal Applications: Perfect for mid-to-small supermarkets, retail chains, and commercial spaces seeking high-performance dimming with optimal cost-efficiency. It is also an ideal choice for the rapid retrofitting of legacy non-dimmable systems.
Dimming Scenes
Through intelligent scene scheduling, our system delivers up to 30% energy savings compared to non-dimmable installations. Different lighting scenes can be schedule-triggered to activate automatically throughout the day, allowing retail chains to transition effortlessly from peak operation to energy-efficient cleaning modes.
To enhance comfort, scene transitions feature super-smooth dimming up to 6 seconds. This wireless dimming lighting system uses slow-fade technology to prevent visual shock for customers and staff while maintaining the flicker-free quality essential for high-end commercial environments.

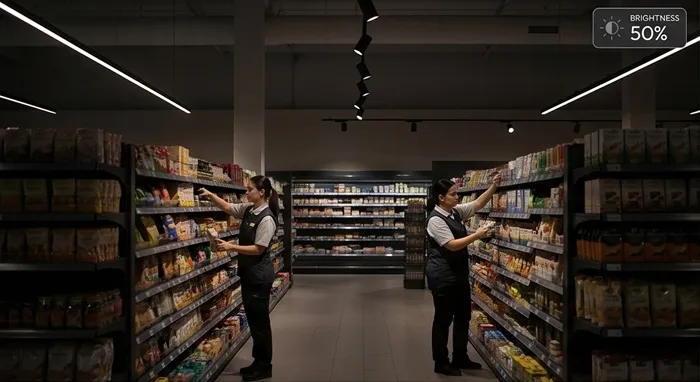

Pre-Open Preparation Mode
Before business hours, the system keeps low brightness levels to prepare the space for opening. Staff can work comfortably while energy consumption is minimized during setup and preparation.
Automated scheduling ensures lights are at the perfect level by opening time, creating a welcoming atmosphere for the first customers of the day.

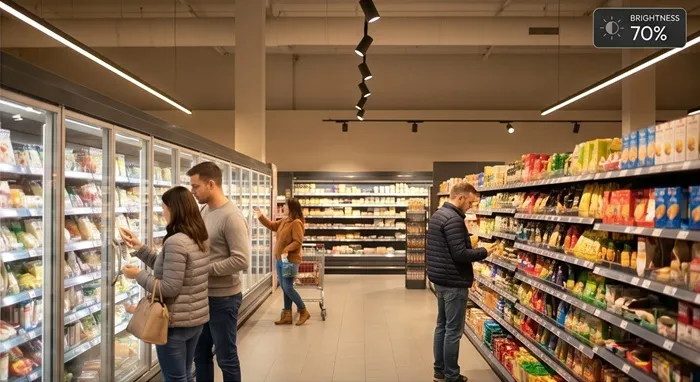

Low Traffic Mode
During periods of lower foot traffic, the system automatically dims non-critical lighting zones to reduce energy consumption while maintaining safety and visibility standards.
Ideal for off-peak hours, break times, and low-activity periods, delivering significant energy savings without compromising operational needs.

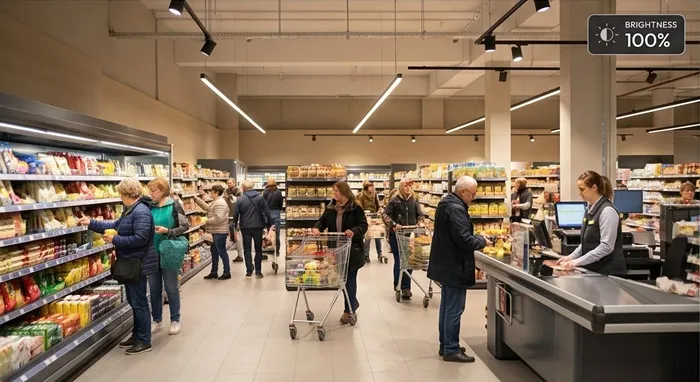

Peak Time Mode
During busy hours, the system maintains optimal brightness levels to create a welcoming and vibrant atmosphere for customers. Full brightness ensures maximum visibility and enhances product presentation.
Perfect for shopping hours, promotional events, and high-traffic periods where customer experience is prioritized.

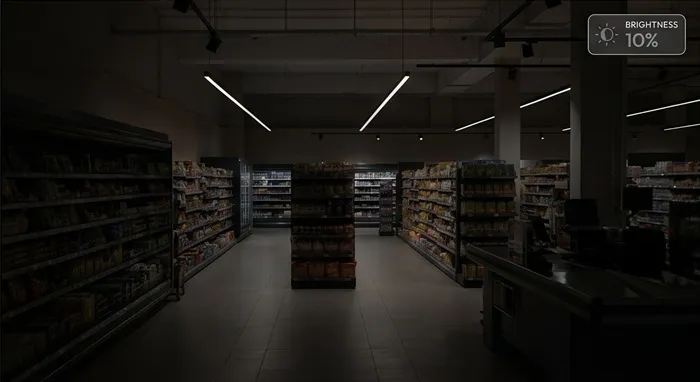

Close / Security Mode
After business hours, the system switches to a low-power security mode, maintaining minimal lighting levels for security cameras and safety patrols.
Automated scheduling ensures this mode activates reliably every day, eliminating overnight energy waste from lights being left on accidentally.
**The scenes shown above are for reference only and do not represent actual usage scenarios. Each user can adjust the most suitable parameters according to their actual usage scenarios.
Cost & ROI Analysis
Based on a 1,000 sqm retail space case study, meeting European illumination standards of 500-750 lux. Factory ex-work premium for BLE-enabled fixtures is $1.50 per unit over non-dimmable versions, while DALI-enabled fixtures carry an $8.00 factory premium. For end customers, the final procurement premium is $5.00 per unit for BLE and $20.00 per unit for DALI systems.Our analysis compares three lighting solutions based on end customers’ budget, with electricity cost set at US$0.2/kWh.
| Fixture Type | Specs | Quantity | Total Power (Non-Dim) |
|---|---|---|---|
| LED Track Light | 20W / 3000lm | 150 Units | 3,000W |
| LED Linear Light | 30W / 5000lm | 80 Units | 2,400W |
| Total Baseline Power | - | 230 Fixtures | 5.4 kW |
Cost & Energy Comparison
| Parameter | Non-Dimmable LED | BLE Wireless Dimming | DALI Wired Dimming |
|---|---|---|---|
| Unit Premium (End-User) | $0 (Baseline) | +$5.00 | +$20.00 |
| Total System Extra Cost | $0 | $1,150 | $4,600 + Wiring Costs |
| Energy Consumption / Year | 23,652 kWh | 16,556 kWh (30% Saved) | 16,556 kWh (30% Saved) |
| Annual Electricity Cost | $4,730.40 | $3,311.20 | $3,311.20 |
| Annual Savings vs. Non-Dim | - | $1,419.20 | $1,419.20 |
Return on Investment Analysis
Payback Period
3-Year Net Profit
Executive Summary
With only $5 per unit premium, the BLE system pays for itself in just 9.7 months, delivering the fastest return on investment in the market.
Generates $3,107.60 net profit in 3 years, with ongoing annual savings of $1,419.20 for the entire lifecycle of the system.
Eliminates the complex wiring and installation expenses required for DALI systems, reducing total implementation costs by up to 75%.
Delivers 30% energy reduction while operating entirely on a local mesh network, ensuring your operational data remains completely private and secure.
Compatible Products
Control Methods
Handheld Remotes
Simple, intuitive controls for on-site staff to make immediate adjustments. Dedicated buttons for common scenes and brightness.
Wall Control Panels
Fixed installation control points at key locations, providing easy access for staff to adjust lighting zones without a remote.

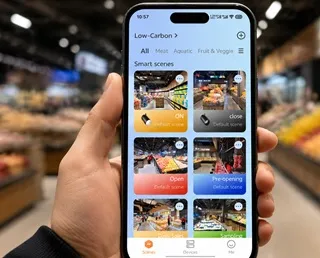

Mobile Application
Powerful visual interface for management to configure scenes, adjust parameters, monitor status from anywhere.
Smart Control Hubs
Integrated touchscreens for centralized control of entire facilities, with customizable dashboards.
User Manuals
Download the BLE dimming guides — App and wall dimmer controller (PDF).
Application Scenarios

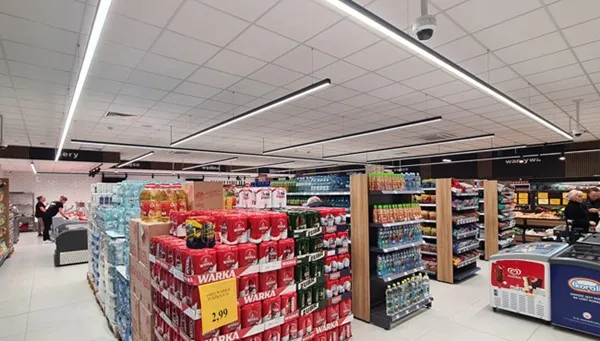

Supermarkets & Hypermarkets
Manage thousands of fixtures across vast aisles with centralized scheduling. Dynamic zoning allows different areas to have independent lighting profiles.

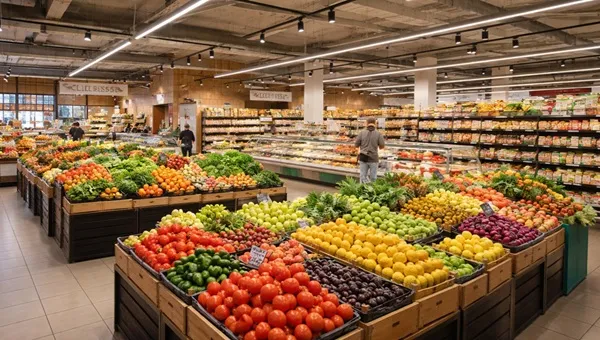

Retail Chains
Maintain a consistent brand atmosphere across all locations with local-first app management, keeping your operational data entirely off-grid and private.

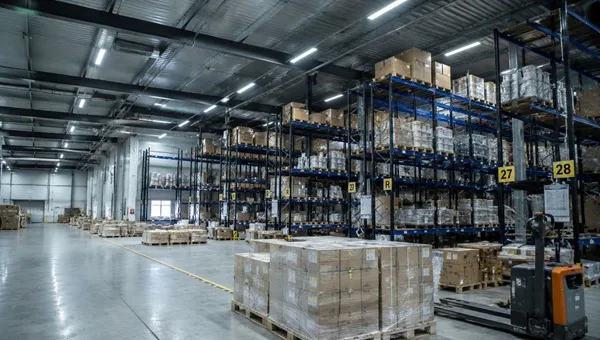

Industrial & High-Bay Spaces
Optimize energy use in large warehouses where lighting is only needed in active zones. Motion-activated lighting ensures work areas are only illuminated when occupied.

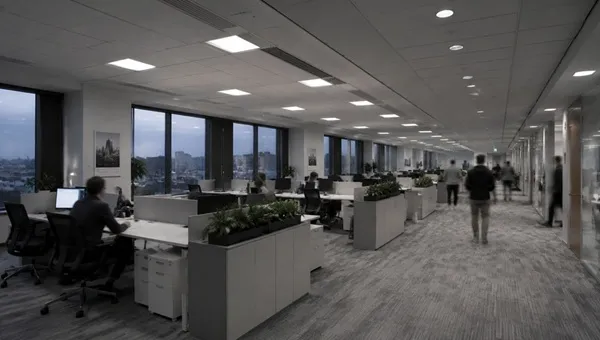

Office Building Renovation
Smart lighting control for 12-floor office building, with occupancy sensing and personalized controls.
