LED LINEAR LIGHT · LL1615 SERIES
PANE-P Adjustable Track Panel
40W-70W · 11000lm · 165lm/w — dual-panel track linear light for retail, supermarket, and industrial spaces.
Home / Product / Led Linear Light / PANE-P
PANE-P LL1615 Adjustable Dual-Panel LED Track Panel Light
PANE-P · 40-70W DIP · 11000lm · 165lm/W · ±90° + 360°
The PANE-P LL1615 is an adjustable dual-panel LED track panel light for supermarkets delivering 40-70W DIP-selectable power, up to 11000lm at 165lm/W and independently tiltable dual panels — each side ±90° vertically with 360° horizontal rotation and 60°/90° optics.
This tiltable LED track panel light replaces two fixed linears on a single 3-phase track point: aim one panel to the left shelving and the other to the right, or split power and CCT per panel for dual-tone zones. The dual-panel LED track light drops into a retail lighting solution with tiltable linear and track spotlights without rewiring, and the PANE-P track panel light keeps inventory tight — one SKU covers 40W/50W/60W/70W field settings.
- 40W-70W DIP adjustable, up to 11000lm
- Up to 170lm/w efficacy, Ra>80/90
- 360° horizontal + 90° vertical rotation, 60°/90° beam
- 4-wire 3-phase track adapter, Black/White finishing
Explore PANE-P Adjustable Dual-Panel LED Track Panel Light
Tiltable dual-panel light for supermarket aisles and retail interiors
The adjustable dual-panel LED track panel light for supermarkets delivers 40-70W DIP-selectable power, 11000lm at 165lm/W with each panel tilting ±90° and 360° rotation. This dual-panel LED track light and tiltable LED track panel light covers both sides of an aisle from one 3-phase point — UGR<22, 60°/90° optics, modern low-glare design.

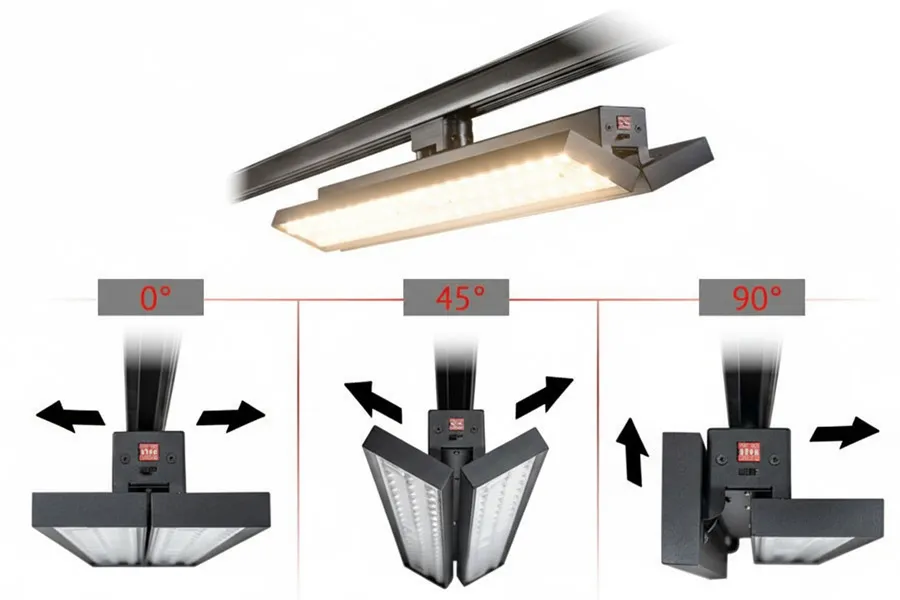

Accurate Dual-Panel Lighting
Tilt each panel to guide light where the PANE-P track panel light is needed
The tiltable LED track panel light adapts to aisle geometry: each panel of this adjustable dual-panel LED track panel light tilts ±90° independently and the whole housing rotates 360° on 4-wire track — aim left + right shelves without adding fixtures.
- Dual-panel LED track light with ±90° per panel, 360° rotation
- 60° & 90° PMMA optics for aisle flood vs open-area wash
- UGR<22 low glare for supermarket and retail comfort
- Optional dual-CCT per panel for warm/neutral zoned displays

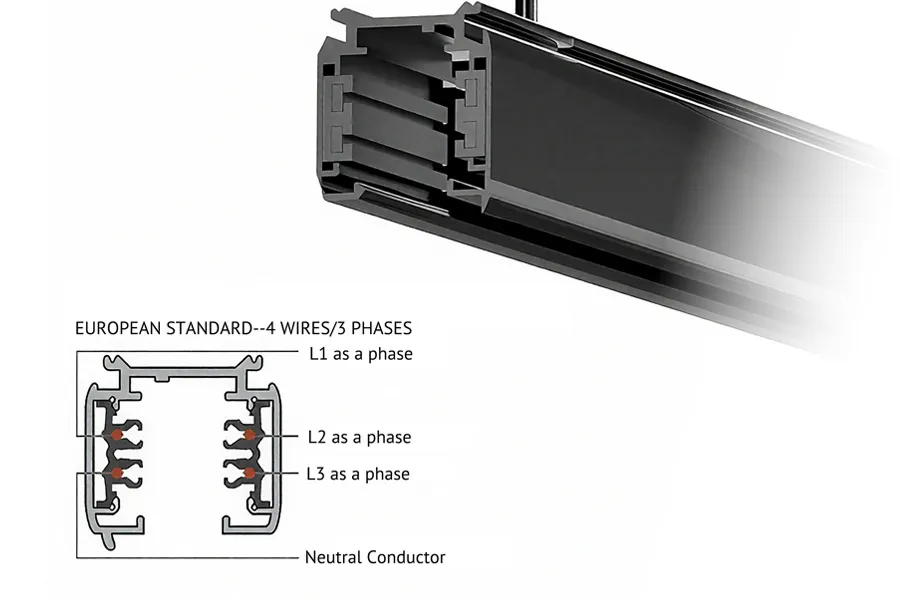

Universal Track Compatibility
Retrofit the adjustable dual-panel light without rewiring
The PANE-P track panel light clicks into existing supermarket and retail tracks — upgrade without rewiring.
- 4-wire / 3-phase European track (Global / Nordic / Eutrac / Stucchi)
- Tool-free click-in install and reposition on 360° adapter
- Slide along track for layout changes, no electrician for re-aiming panels
- Long lifespan low maintenance for high-bay supermarket aisles

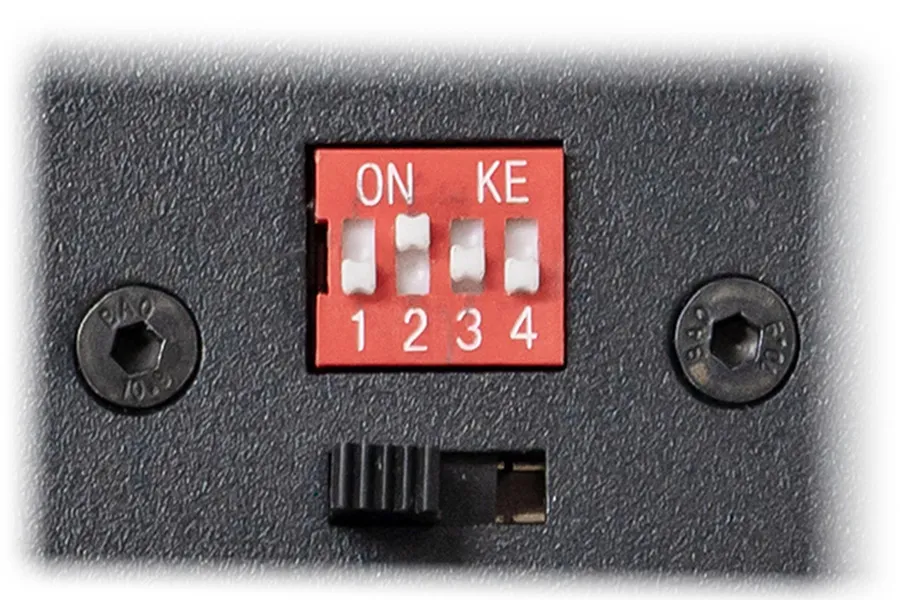

DIP Switch Power & CCT Control
DIP sets 40-70W — one PANE-P track panel light for four outputs
The 4-bit DIP switch on this dual-panel LED track light sets 40W/50W/60W/70W on site — and optional dual-CCT per panel for dual-tone aisles.
- Field DIP selection 40-70W without driver swap
- One SKU covers four supermarket and retail layouts
- Stock fewer PANE-P housings, cover more bays
- 165lm/W energy efficient for 3.5-6m high-bay aisles
Why PANE-P Dual-Panel for Supermarket Aisles
One track point lights both sides — independently tiltable
Each panel tilts ±90° independently; whole fixture rotates 360° on 4-wire track
One Point, Two Light Fields — Independently Tiltable
The PANE-P LL1615’s dual-panel architecture solves the aisle dilemma: a single 3-phase track point must wash two opposite shelf faces without doubling fixtures. Each panel of this adjustable dual-panel LED track panel light tilts ±90° independently and the whole housing rotates 360°, so left and right shelves get dedicated beams from one housing — 60° for aisle flood, 90° for open areas, both UGR<22.
Directional control beats raw lumens for shelf visibility — retail guides and aisle-lighting practice converge on the same point. That is why retail lighting that pairs tiltable linear main light with track spotlights outperforms fixed batten rows — PANE-P is the tiltable main light in that system, while VUE-S high-CRI track spotlights handle accent.
Flexibility extends to electrics: a 4-bit DIP switch sets 40W/50W/60W/70W on site (one SKU, four outputs), and each panel can be ordered in a different CCT for dual-tone aisles — warm merchandise vs. neutral walkway. For why adjustable beam direction matters in store conversion, see why choose track lighting for retail stores.
Top view 2.8m aisle: dual-panel halves fixture count per bay; DIP halves SKU count
Aisle Light That Pays Back in Fixtures and SKUs
In a 3-6m high supermarket aisle the maths favours dual-panel: one LL1615 tilts left 55° to one shelf stack and right 40° to the opposite, so one track point replaces two fixed linears. Combine that with DIP power scaling and a distributor stocks one PANE-P SKU instead of four fixed wattages — the tiltable LED track panel light earns its keep in fewer housings and fewer boxes on the shelf.
For siblings, compare: the SOLO-L LL1613 high-lumen dual-tube linear track light trades dual-panel tilt for raw output — 13000lm at 150lm/W in ±90° dual tubes for large-format stores — and if you need a minimal profile for boutiques and offices, see the TRON-W ultra-slim 8mm linear track light with 20-60W DIP in 2-5ft lengths — choose adjustable dual-panel when you must aim two ways at once; choose ultra-slim when thickness matters.
| Model | Form | Output | Adjustability | Best for |
|---|---|---|---|---|
| PANE-P LL1615 | Dual-panel | 40-70W · 11000lm · 165lm/W | ±90° per panel + 360° | Supermarket aisles both sides |
| SOLO-L LL1613 | Dual-tube | 60-90W · 13000lm · 150lm/W | ±90° per tube + 360° | High-bay large retail/industrial |
| TRON-W LL1616 | Ultra-slim 8mm | 20-60W · 10000lm · 170lm/W | Fixed 90° | Boutique / office low profile |
Datasheet
LC-LL1615 full specifications
| LC-LL1615 | |
|---|---|
| Model | LC-LL1615 |
| Wattage | 70W max |
| Lumen Output | 11000lm (165lm/w) |
| Size (Ø x H) | L577xW140xH124mm |
| Beam Angles | 60° / 90° |
| CRI | Ra>80 / 90 |
| Adapter | 4 Wire (3 Phase) |
| Color | Black/White |
| Dimmable | 40W/50W/60W/70W By DIP |
FAQ
Quick answers about the LL1615 series
Each LED panel rotates ±90° vertically — yes, with full directional flexibility. Additionally, power output from each side can be customized via DIP switches, giving you full control over light level balance between sides. Optional customization allows different CCTs per panel for dual-tone applications.
Set wattage without tools — the built-in 4-bit DIP switch lets you set the total system wattage between 27W, 40W, 50W, and 60W (or 40W 50W 60W 70W) without external tools. This is ideal for:
- Stocking one model — serve multiple wattage requirements from one SKU
- Field adjustments — tune to real-world lux requirements on site
- Reduced inventory complexity — fewer codes to stock and reorder
Standard 60° or 90° PMMA lens covers linear aisle or open-area lighting. For large-scale projects, we can provide custom optical lens configurations such as asymmetric wall washing or narrow-beam shelf focus. Dialux files and IES photometry are available upon request.
TRIAC, 0-10V and DALI dimming on request complement onboard DIP control. This makes LL1615 fully compatible with most smart lighting infrastructures, including KNX, Casambi, Lutron, and Philips Dynalite systems.
One fixture emits two CCTs — yes, you can customize each panel with a different CCT, allowing the same fixture to emit both warm and neutral light. This is ideal for:
- Zoning merchandise vs walking paths — separate warm product light from neutral aisle light with one housing
- Highlighting vs ambient contrast — punch focal displays while keeping walkway comfortable
- Dual-tone retail and museum scenes — warm and neutral scenes from one track point
Up to 11000lm at 165lm/W — LL1615 is powerful enough for supermarkets, warehouses, and high-bay commercial spaces. Combined with its adjustable optics, it works perfectly in spaces 3.5-6 meters high.
3-phase 4-wire track adapter fits Global Trac (Nordic), Eutrac, Stucchi, and most European/Australian commercial track systems. Need compatibility with 2wires and 3wires? 2wires 3wires are also OK for this fixture.
Standard warranty is 3-5 years. For international clients, we offer spare drivers/LED modules with each shipment and remote troubleshooting support via video or drawings.
