CCT & POWER SELECTABLE · 650 SERIES
VUE-D Selectable Track Light for Distributors
DIP switch 15/25/32W & 3 CCTs · Ra90 · 15-60° — one SKU covers 9 configs for retail and exhibitions.
Home / Product / Led Track Light / VUE-D
VUE-D 650 CCT and power selectable LED track light in black finish — DIP switch for distributors, 15/25/32W and 3 CCTs in one SKU.
VUE-D CCT & Power Selectable LED Track Light
650 series · DIP switch 15/25/32W & 3 CCTs · CRI90 · 15-60° optics
The VUE-D 650 is a CCT & power selectable LED track light with DIP switches that let installers pick wattage and color temperature on site — one SKU that covers 9 pre-set combinations.
It delivers a maximum of 32W and up to 4500lm at up to 145lm/W with >Ra90 rendering and 15-60° optics, making this wattage selectable track light ideal for distributors and retailers who want fewer SKUs, plus a 5-year warranty.
- DIP switch CCT & power selectable, 9-in-1 SKU
- 15W / 25W / 32W, up to 4500lm
- 15°/24°/36°/60° beam angle, White/Black finishing
- 3-phase 4-wire track adapter, 5-year warranty
Datasheet
Select a model to view full specifications
| LC-6500A-15W | |
|---|---|
| Wattage | 15W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2050lm ±5% |

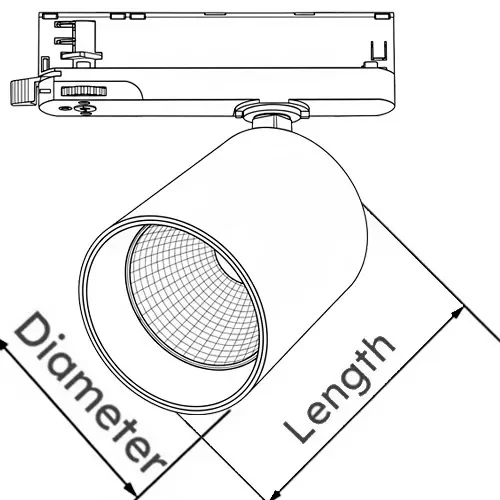

| Size (Ø x H) | Ø71*85mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36°/60° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-6501A-25W | |
|---|---|
| Wattage | 25W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 3550lm ±5% |
| Size (Ø x H) | Ø82*100mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36°/60° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-6502A-32W | |
|---|---|
| Wattage | 32W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 4500lm ±5% |
| Size (Ø x H) | Ø100*105mm |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36°/60° |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
Why VUE-D Selectable Saves Inventory
One SKU that covers 9 pre-set combinations in the field
The VUE-D 650 is built for distributors who would otherwise stock 3 wattages × 3 CCTs = 9 SKUs to cover the same demand: a CCT & power selectable LED track light where DIP switches set 15/25/32W and three color temperatures in one housing. At up to 145 lm/W and CRI >Ra90 every selectable output keeps the same retail-grade vividness, and the family belongs in a retail lighting solution for distributors that stocks one box instead of nine.
The math distributors use is direct: a traditional fixed-spec strategy forces a track-light family to forecast 9 separate CCT/wattage mixes, each with MOQ, safety stock and shelf space. A single VUE-D 650 covers the 9 mixes — selectable power via the driver DIP and selectable CCT via the adapter switch — so demand concentrates on one SKU, reducing dead-stock risk and releasing working capital. It is the same 9-in-1 logic that why track lighting suits retail stores when layouts change, applied to inventory rather than aiming.
Quality stays consistent across switches: Bridgelux COB, SDCM <3 and selectable TRIAC/0-10V/DALI dimming on request — DALI being the official DALI Alliance lighting control standard — so the same SKU can ship warm 3000K for boutiques today and neutral 4000K for supermarkets tomorrow without a second shipment.
For distributors who need filed flexibility choose VUE-D 650; when the spec is locked and you want a fixed optimum per optic, see the VUE-S high CRI track light for fixed retail displays with 15/24/36° fixed optics, or the VARO-Z zoomable track light for museums when one head must sweep 15–60° on site.
From 9 fixed SKUs to 1 selectable SKU — DIP switches replace warehouse variants
| Model | Selectable | Beam | Best for |
|---|---|---|---|
| VUE-D 650 | CCT & power via DIP | 15/24/36/60° | Distributors, multi-site rollouts |
| VUE-S TR0103 | Fixed 15/24/36° | 145 lm/W | Fixed retail, max lm/W per optic |
| VARO-Z ZT01 | Zoom 15–60° | 145 lm/W | Galleries, changing displays |
Configure on Site, Not in the Warehouse
DIP switches for power and CCT — adjust on the ladder without reordering
One box on the truck, nine options on the ladder — power and CCT set in seconds before closing the fixture
Put numbers on it: stocking 9 fixed variants at 10 pcs safety stock = 90 fixtures tied in capital; stocking one VUE-D 650 at 30 pcs = 30 fixtures covering the same 9 briefs, with the setting made once at install, not dynamically like dimming. Fewer SKUs means simpler database, easier reorder, and fewer specification returns when the site survey differs from the order.
Use it where it pays most: multi-site rollouts where ceilings swing 2.5–5m, walk-in will-call counters where the next customer’s brief is unknown, and distributor house stock where shelf space is money. This CCT selectable track light and wattage selectable track light in one housing does the merchandising job while the inventory job disappears — the same VUE-D selectable track light that replaces 9 boxes on the shelf.
FAQ
Quick answers about the 650 series
9-in-1 SKU with the same retail light quality
This CCT & power selectable LED track light packs 3-power DIP and 3-CCT DIP into one housing: 3 × 3 = 9 field-selectable combinations (15/25/32W × 2700K/4000K/6000K). One SKU replaces 9 fixed variants while keeping up to 145 lm/W and >Ra90 at every setting.
Modular design for sustainability
Featuring a modular design, this track light allows for easy replacement or upgrades of components. This not only extends the product's lifespan and reduces waste but also effectively lowers carbon emissions, helping your business contribute to its sustainability goals.
Set once before closing the fixture — no extra controller or rewiring.
Power DIP (driver side)
Flip the driver DIP to 15W for low bays, 25W for standard 3m retail, 32W for high-bay 4–5m halls — output scales to 4500lm accordingly.
CCT DIP (adapter side)
Flip the adapter DIP to 2700K warm for boutiques, 4000K neutral for supermarkets and jewelry, 6000K cool white for galleries and supermarkets with daylight briefs. Dimmable TRIAC/0-10V/DALI remains fully functional after the selection.
A fixed-spec family needs 9 SKUs; one selectable VUE-D 650 needs 1 — at a typical safety stock of 10 pcs per SKU, that is 90 pcs vs 30 pcs for equivalent coverage, about ~66–89% fewer SKUs and fixtures depending on stock depth — with demand concentrated on one reorder line, forecasting concentrated, warehouse bays freed and dead-stock risk down. Installers also gain: if the site survey is off, they switch on the ladder instead of returning a box.
The inventory win is structural, not a fixed percent: the same distributor can purchase more concentrated, improve cash flow flexibility and respond faster to walk-in customers with one box on the shelf.
2700K Warm: boutiques, hospitality, bread
Soft warm tone for cozy retail and bakery zones.
4000K Neutral: jewelry, supermarket, office
Natural daylight rendering for true product texture — the workhorse for supermarkets.
6000K Cool white: gallery, supermarket daylight
Crisp high-brightness white for art galleries and supermarkets requesting daylight briefs. One SKU lets you choose per project, not per purchase order.
Narrow 15–24°: sculpture, jewelry, window focal
Precise accent light for focal displays within the 15–60° set.
Medium-wide 36–60°: shelving, bays, wall wash
Balanced to broad light for retail bays and exhibitions. The 650 family uniquely offers 15/24/36/60° — the extra 60° flood is the distributor’s wall-wash option that fixed 15/24/36° families lack, so one selectable SKU also covers the flood brief without a second housing.
Yes, we have well-developed solutions for specialized colors. For refrigerated and counter food displays see the FLES-M fresh food LED bar light with pink meat and bakery spectra.
Illuminate Freshness, Ignite Cravings
Our LED fresh produce lights use advanced color-blending technology to create stunning lighting effects for your products.
- Boost Product Appeal — professionally customized color schemes for meat, vegetables, bread and seafood areas
- Enhance the Look of Freshness — make meat look rich and red, leafy greens vibrant and crisp, bread golden brown
- Drive Sales — specialized lighting design beautifies products and stimulates purchase desire
Absolutely — TRIAC, 0-10V and DALI dimming on request in addition to dual DIP switches, fully compatible with KNX, Casambi, Lutron and DALI 2 — dimming remains independent of the field-selectable power/CCT setting.
Standard 3-phase 4-wire track adapter compatible with Global Trac (Nordic), Eutrac, Stucchi and most European/Australian commercial track systems. Need compatibility with special systems? Let us know — we can customize adapters.
Standard 3–5 year warranty with spare drivers/LED modules per shipment and remote troubleshooting via video or drawings for international clients.
