LINKABLE MEAT DISPLAY BAR LIGHT · FLES-M SERIES
FLES-M Cold-Cabinet Meat Bar
Pink-meat spectrum · 20–30W · links to 660W — built to live inside butcher counters and refrigerated cases.
Home / Product / Led Linear Light / FLES-M
FLES-M linkable LED meat display bar in silver aluminum housing with pink-meat LEDs for cold cabinets.
FLES-M Linkable LED Meat Display Bar Light
LC-MB01-24W · pink-meat spectrum · IP65 · 40–110CM, linkable to 660W
The FLES-M is a linkable LED meat display bar light for cold cabinets, built to sit inside serve-over counters and refrigerated cases where the light itself sells the product. Its pink-meat spectrum keeps beef cherry-red with white fat, while fruit, bread, fish and vegetable settings on the same bar family dress the neighboring counters in one installation.
Unlike a plain white freezer strip, this pink LED meat bar light is a merchandising tool: 20–30W per bar with up to MAX3000lm output and a full aluminum housing with tempered glass and IP65 seal for fast heat shedding against condensation and daily wipe-downs. Bars link end to end on a single feed up to a 660W max run, so a long meat wall needs one circuit instead of many.
- 20W-30W, MAX3000lm ±5%, linkable Max 660W
- Pink for meat + optional colors, CRI ≥80
- Full aluminum body, tempered glass, IP65
- 40/60/80/110CM lengths, silver finishing
Datasheet
LC-MB01-24W full specifications
| LC-MB01-24W | |
|---|---|
| Model | LC-MB01-24W |
| Wattage | 20~30w |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | MAX3000 lm ±5% |
| Length | 40/60/80/110CM |
| CRI | ≥80 |
| Color | Pink For Meat |
| Optional Colors | Fruit / Bread / Fish / Vegetable |
| Max Linkable Run | 660W on a single feed |
| Finishing | Silver |
| IP Rating | IP65 |
Why FLES-M Belongs Inside the Cabinet
Pink-meat spectrum on a linkable IP65 bar — not a white strip
Cabinet glass is where meat is judged, and plain white strips wash it pale. The FLES-M puts a tuned pink-meat spectrum exactly where the product sits — inside the serve-over counter — so beef stays cherry-red and fat stays white. It plays the case-lighting role inside a broader retail lighting solution for supermarkets that pairs cabinet bars with overhead accent fixtures.
Mounting position decides the fixture. Overhead track suits open aisles, but inside a cold, wet case you want a sealed bar that links run after run. For open butcher counters lit from a rail above, see the VUE-F fresh food track spotlight for open counters; for light built into the case itself, the FLES-M links up to 660W on one feed, sealed in an aluminum-and-glass body that shrugs off condensation and wipe-downs.
One family dresses the whole counter because a case lineup rarely holds meat alone. The standard pink setting serves the butcher block while fruit, bread, fish and vegetable settings cover the neighboring produce and bakery cases — and for dry general-merchandise aisles outside the cold zone, the LINA-K linkable linear light for general aisles continues the same single-feed idea in plain white light.
Linked segments share one feed — one circuit covers a multi-case meat wall
| Model | Form | Spectrum | Best for |
|---|---|---|---|
| FLES-M | Linkable IP65 bar | Pink meat + 4 optional settings | Inside cold cabinets & serve-over counters |
| VUE-F TR0102 | Track spotlight | Meat / bakery / produce / seafood zones | Open counters & aisles from above |
| LINA-K 1614 | Suspended linkable linear | General white light | Mall aisles & dry-goods zones |

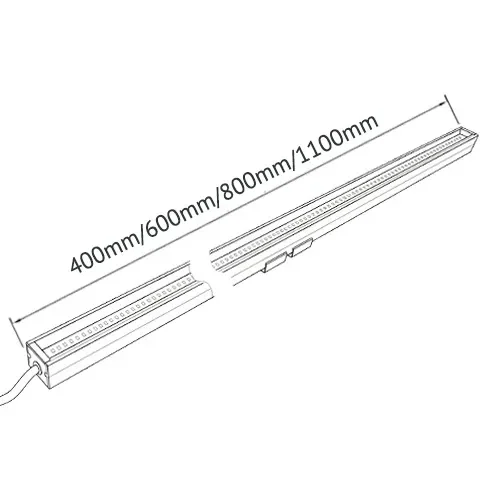

Size the Run to the Case
Lengths, outputs and the 660W single-feed budget
Match bar length to case modules:
- 40CM — for short service hatches
- 60/80CM — for standard serve-over sections
- 110CM — for long meat walls, all in the same silver finish so mixed lengths read as one continuous line
Each bar draws 20–30W with up to MAX3000lm — roughly double the 6–15W freezer strips, so fewer bars cover the same glass with fewer shadows.
Then spend the 660W budget: about 22 bars at 30W or about 33 bars at 20W on one feed — several times the roughly 150W string limit of typical daisy-chain freezer bars, which means fewer drivers, fewer home runs and faster install across a multi-case lineup. This IP65 linkable freezer bar light runs straight off 220–240V AC on stainless mounting clips, so a retrofit is clip in, link up, power on.
FAQ
Fresh food light answers for retail counters
It is designed for butchers, bakeries, fruit and vegetable counters and cold cabinets — the linkable design (Max. Run: 660W) and 40/60/80/110CM lengths with silver finishing fit a wide range of fresh food retail scenarios. The FLES-M fresh food bar light ships exactly these four lengths for that range.
It features specially designed light sources and colors to enhance the fresh appearance of food — the standard color is pink for meat with optional colors available, and CRI ≥80, effectively boosting customers' purchase desire. The FLES-M ships this pink setting as standard, so a butcher counter reads fresh from the first power-on.
With IP65 rating, full aluminum body and tempered glass the bar delivers better heat dissipation performance and reliable protection for cold cabinets and other demanding fresh food venues. That is why the FLES-M uses aluminum and glass instead of an all-plastic housing.
It offers 20–30W with MAX3000lm ±5% output, delivering higher power and brightness than other cold cabinet lights in the market, with linkable installation up to Max 660W. At up to MAX3000lm per bar, the FLES-M covers a standard serve-over section with a single bar.
Choose by mounting position — the FLES-M lives inside the case: a sealed, linkable bar that washes product at close range on one 660W feed. A track spotlight lives above the case on a rail and throws accent light down onto open counters — our VUE-F track spotlight family covers that overhead job, as the comparison table above shows.
No — as long as each case section runs its own setting — pink flatters red meat but would tint pale bread, so the FLES-M family adds fruit, bread, fish and vegetable settings on the same bar platform (see the color card in the hero section above). For dry bakery shelves outside the cold case, a general white fixture such as the VUE-S general-retail track light is the better call.
Up to 660W on a single feed — about 22 bars at 30W or about 33 at 20W — in 40/60/80/110CM lengths to match case modules. Stainless mounting clips grip the aluminum housing (shown in the gallery above), and the bar runs straight off 220–240V AC with no separate driver boxes along the case.

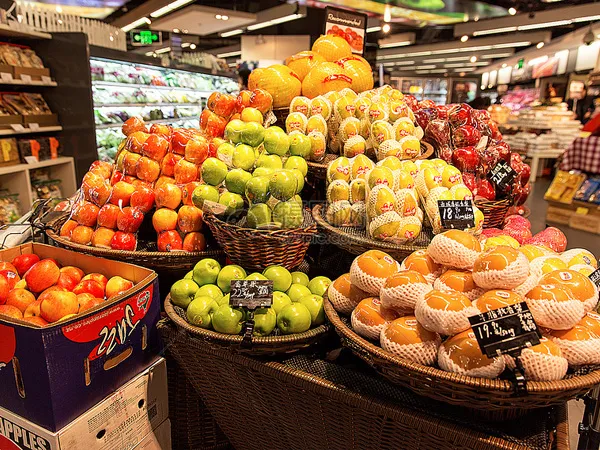

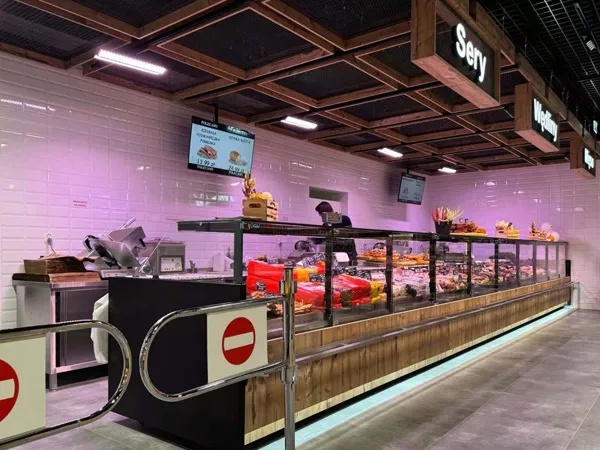

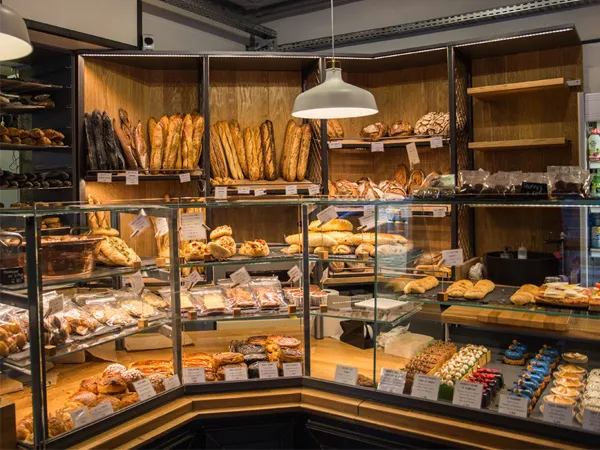

Application
FLES-M in butcher, bakery and cold cabinets
