SP01 Triac Dimmable LED Spotlight

KOLA-S series · 5W-35W · CRI90 · 30° tilt · TRIAC/0-10V/DALI

The KOLA-S SP01 is a triac dimmable LED spotlight for retail stores, built for boutiques, jewelry counters and hotel displays where staff dim the accent light through the day without rewiring the ceiling — TRIAC standard dims off existing wall dimmer.

This adjustable tilt retail spotlight covers 5W to 35W (650lm to 4700lm) at up to 140lm/W with CRI90, a 30-degree tilting head and 38/60-degree beams, so one recessed family washes aisles and punches focal points.

• TRIAC dimming standard, 0-10V/DALI on request
• 5W-35W options, up to 140lm/W, CRI ≥90
• 30° tilting head, 38°/60° beams, L80 >50000h
• White/Black finishing, recessed cutouts Ø55-135mm

• LC-SP01-5W
• LC-SP01-10W
• LC-SP01-15W
• LC-SP01-25W
• LC-SP01-35W

KOLA-S SP01 TRIAC Dimmable Spotlight for Retail

TRIAC dimmable on existing wiring — no rewiring — the KOLA-S SP01 is a TRIAC dimmable recessed spotlight made for shops that cannot rewire: it dims straight off a standard wall dimmer, so boutiques and jewelry counters get morning-to-evening scenes with the wiring they already have. Plan it as part of a retail lighting solution combining accent and ambient fixtures where SP01 handles the dimmed focal points and linear or panel fixtures carry the background light.

Holds CRI90 while output drops from 50% to evening glow — dimming behavior follows the use of the floor, not the datasheet. This adjustable tilt retail spotlight holds CRI90 color while the output drops, so gold stays warm and white shirts stay neutral at 50% during browsing hours and drop to a low evening glow after closing. TRIAC standard for retrofits; 0-10V and DALI on request for central schedules.

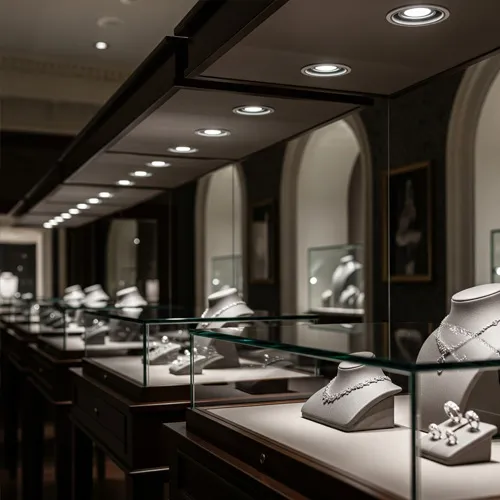

30° tilting head with 38° for cases and 60° for walls — no cutout move — aim does the rest of the work. The 30-degree tilting head points each beam at the product after every display change, the 38-degree optic punches narrow jewelry cases and mannequin features, and the 60-degree optic washes wider boutique walls without moving the cutout. Up to 140lm/W with L80 over 50000 hours keeps dimmed accent bright.

For dimmed, aimable accent light choose SP01 with its tilt head and TRIAC driver; for a fixed, soft ceiling of comfort light with no aiming at all, see the GLOW-D fixed anti-glare comfort downlight in the same recessed family.

SP01 Wattage and Cutout Choices for 3–5m Retail Floors

Pick wattage by throw distance and case size.

• 5W head 650lm Ø55mm — small jewelry cases and short-throw niches
• 10W and 15W heads 1400-2150lm Ø75-95mm — standard 3-meter boutique ceilings and wall displays
• 25W and 35W heads 3600-4700lm Ø125-135mm — 4-5 meter hotel lobbies and wide island counters

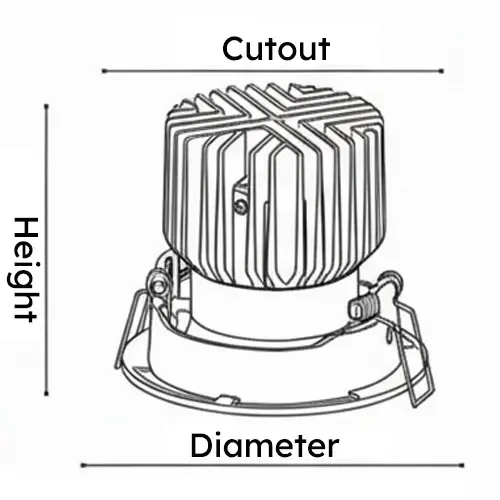

Cutouts run from Ø55mm to Ø135mm, so small cases and large lobby ceilings stay in one visual family. Where the slab cannot be cut at all, the IRIS-S surface-mounted tiltable boutique downlight carries the same CRI90 accent on the ceiling surface.

Three TRIAC scenes — 100% peak, 40-60% daytime, 10-15% evening glow — then set three TRIAC scenes and leave them alone. Run 100% at peak hours when sparkle sells diamonds and color sells fashion, 40-60% through daytime browsing to cut heat and energy while keeping CRI90 fidelity, and 10-15% as an evening glow that keeps window displays alive after closing. Because every head dims on the same two wires from the wall, staff change the mood without relamping.
