LED DOWNLIGHT · SL SERIES
IRIS-S Tiltable SM Downlight
10W-32W · 1400-4400lm · surface mounted tiltable downlight for retail stores, no ceiling cutout.
Home / Product / Led Downlight / IRIS-S
IRIS-S Tiltable Surface Mounted LED Downlight
SL series · adjustable surface mounted downlight · 10W-32W · Ra90 · 15°/24°/38°/60°
The IRIS-S SL is a tiltable surface mounted LED downlight for retail stores, fixing straight onto solid ceilings with no cutout and aiming with a 0-90° tilt plus 355° rotation for windows and shelves that change weekly.
This surface-mounted tiltable downlight runs 10W to 32W (1400lm to 4400lm) at up to 145lm/W with CRI over Ra90, so this IRIS-S SL downlight keeps fabrics and skin tones true while the flicker-free UGR<22 optic stays kind to staff under the lights all day.
- 10W-32W, 1400-4400lm, up to 145lm/w
- CRI ≥90, 15°/24°/38°/60° beam
- 0-90° tilt + 355° rotation, tool-less
- UGR<22 flicker-free, White/Black
Datasheet
Select a model to view full specifications

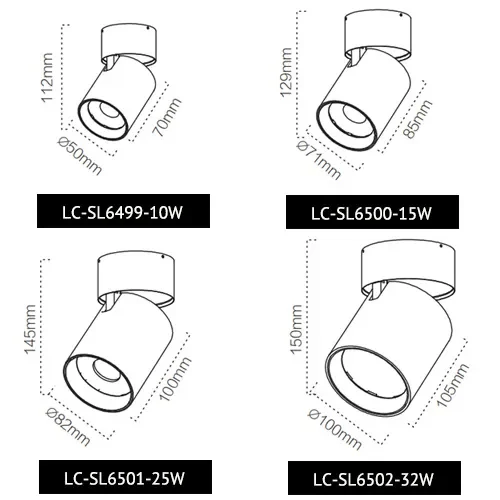

| LC-SL6499-10W | |
|---|---|
| Model | LC-SL6499-10W |
| Wattage | 10W ±5% |
| Input Voltage | 220-240V |
| Lumen Output | 1400 lm |
| Size (Ø x H) | Ø50*70mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| PF | >0.9 |
| Finishing | White/Black |
| LC-SL6500-15W | |
|---|---|
| Model | LC-SL6500-15W |
| Wattage | 15W |
| Input Voltage | 220-240V |
| Lumen Output | 2100 lm |
| Size (Ø x H) | Ø71*85mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| PF | >0.9 |
| Finishing | White/Black |
| LC-SL6501-25W | |
|---|---|
| Model | LC-SL6501-25W |
| Wattage | 25W |
| Input Voltage | 220-240V |
| Lumen Output | 3600 lm |
| Size (Ø x H) | Ø82*100mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| PF | >0.9 |
| Finishing | White/Black |
| LC-SL6502-32W | |
|---|---|
| Model | LC-SL6502-32W |
| Wattage | 32W |
| Input Voltage | 220-240V |
| Lumen Output | 4400 lm |
| Size (Ø x H) | Ø100*105mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| PF | >0.9 |
| Finishing | White/Black |
Why IRIS-S for Changing Retail Floors
Surface-mounted accent light that re-aims when displays move
IRIS-S Surface-Mounted Downlight Needs No Cutout
Screws straight onto solid ceilings with no cutout — concrete slabs and finished ceilings often leave no room for a cutout. The IRIS-S SL is a tiltable surface mounted LED downlight for retail stores that screws straight onto the ceiling surface, so boutiques, clothing shops and hotel galleries get accent light without cutting holes or reinforcing the slab. It works as the no-cutout accent layer inside a retail lighting solution combining downlights with track accent, next to linear and track fixtures.
Windows and shelves reset weekly, and the light should follow them. Each adjustable surface mounted downlight head tilts 0-90° and rotates 355°, fully tool-less — staff push the head by hand when displays move, no electrician on a ladder. Where the ceiling is still open and can take a hole, the same 10-32W family offers the IRIS-R recessed tiltable downlight for new ceilings; for solid slabs that cannot be cut, stay with surface-mounted IRIS-S.
Up to 145 lm/W with CRI over Ra90 and flicker-free UGR under 22 — output backs the flexibility up: up to 145 lm/W with CRI over Ra90 keeps fabrics and skin tones true, while the flicker-free driver holds UGR under 22 for staff standing under the lights all day. Fitting rooms and corridors where nobody moves anything want calm instead — give those zones the GLOW-D fixed anti-glare downlight for lingering zones — and let this surface-mounted tiltable downlight chase the merchandise.
- 15° for mannequin spots — tight accent on mannequins and logos
- 24–38° for shelves and hanging rails — even wash for shelf runs
- 60° for general fill — soft fill between accent points
Surface base on finished ceilings — tilt plus rotation aims the beam after install
| Model | Mounting | Adjustment | Best for |
|---|---|---|---|
| IRIS-S SL | Surface-mounted, no cutout | 0-90° tilt + 355° rotation | Solid slabs, rotating displays |
| IRIS-R RD | Recessed, cutout Ø55-115 | 90° vertical tilt | New ceilings, same accent need |
| GLOW-D DL01 | Fixed recessed | No tilt, UGR22 comfort | Lingering zones, corridors |
One Point, Three Aims
Wattage and beam choices for 2.6-4.5m retail ceilings
IRIS-S Wattage Choices for 2.6–5m Retail Ceilings
Match wattage to ceiling height.
- 10W head 1400lm Ø50 body — low corners and fitting-room ends
- 15W head 2100lm — standard 2.6-3m boutique ceilings
- 25W head 3600lm — workhorse for 3-4m sales floors
- 32W head 4400lm Ø100 body — reaches 4-5m hotel galleries where throw eats lumens
All four share the same surface base, so one ceiling can mix wattages without mixing looks.
Then aim by task, not by ladder. A 15° beam picks out a mannequin or wall logo, 24-38° washes shelves and hanging rails, and 60° opens up for general fill between accent points. Because every IRIS-S SL downlight re-aims by hand in seconds — tilt toward the new hero product, twist for the wall wash, done.
One surface point covers mannequin, shelf and wall — re-aimed by hand in seconds
FAQ
Tiltable downlight answers for commercial lighting projects
No-cutout install plus tool-less 0-90° tilt and 355° rotation — three things in one surface-mounted body: no-cutout install on solid slabs, tool-less 0-90° tilt plus 355° rotation for weekly display resets, and up to 145lm/W at CRI over Ra90 so goods look true. The IRIS-S SL ships exactly this surface-mounted 10-32W range with 15°/24°/38°/60° optics.
Pick by ceiling — solid slabs want surface-mounted, new open ceilings can recess — pick by ceiling, not by brightness — both families share the 10-32W engine. Solid concrete, finished plasterboard or heritage ceilings that cannot take a hole want surface-mounted IRIS-S; new open ceilings with planned cutouts can use a recessed sibling instead. The IRIS-S SL base covers a standard junction box, so retrofit stores skip re-plastering entirely.
Yes, fully by hand — 0-90° tilt and 355° rotation holds after every push. The head holds its 0-90° tilt and 355° rotation position after every push, so an evening window reset needs no ladder work on wiring and no electrician call-out. The IRIS-S SL pairs that freedom with a flicker-free driver at UGR<22, steady for staff under the lights all day.
15/24/38/60° covers spots, washes and fill from one family — aim 15° at mannequins and logos, wash shelves with 24°/38°, and open to 60° for general fill — all four beams ship across the series. For height, take 10-15W under 3m, 25W for 3-4m sales floors, and 32W (4400lm) for 4-5m galleries. The IRIS-S SL keeps one surface-base look across all four wattages, so mixed ceilings stay visually calm.
10W 1400lm to 32W 4400lm at up to 145lm/W with CRI over Ra90 — the math holds across the range: 10W gives 1400lm, 32W gives 4400lm, all at up to 145lm/W with CRI over Ra90 — bright, true-to-life light without the energy penalty of halogen accent heads. The IRIS-S SL therefore retrofits one-for-one onto old surface spots while cutting lighting power by more than half.
Warm white for lobbies and fitting rooms, neutral to cool for clothing floors — warm white flatters hotel lobbies and boutique fitting rooms, neutral to cool white suits clothing floors and commercial halls where true color judgment matters. White housings vanish into pale ceilings, black housings read as deliberate accent gear. Tell us the IRIS-S SL wattage plus the room, and we match CCT and finish before shipment.

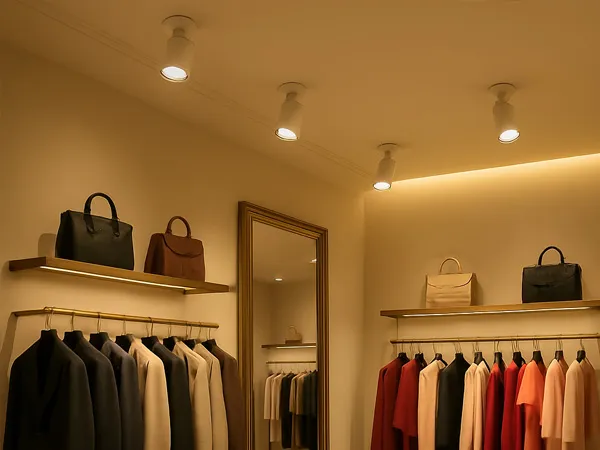

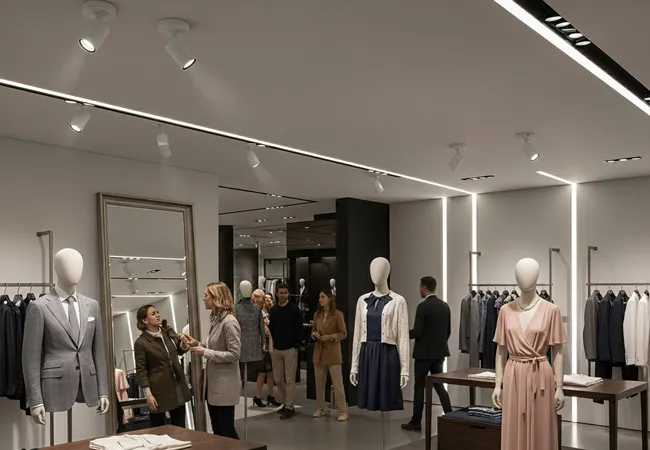

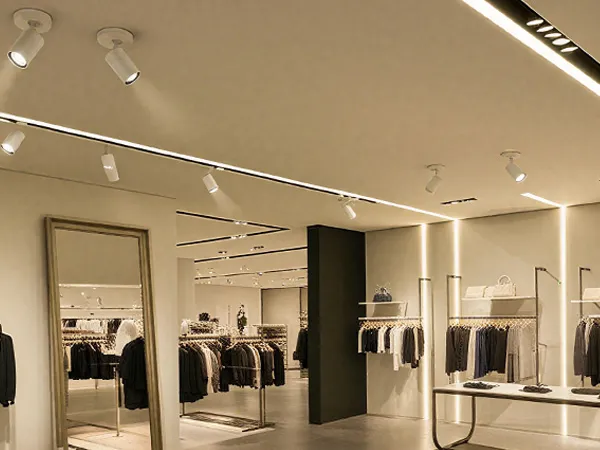

Application
