LED LINEAR LIGHT · LL1617 SERIES
TRON-N Selectable Linear Track Light
DIP 20-40W & 3000/4000/6000K selectable — one SKU 9 combos, 8mm W50, up to 6600lm at 170lm/W for shops, showrooms and offices.
Home / Product / Led Linear Light / TRON-N
TRON-N CCT and Power Selectable LED Linear Track Light
Wattage selectable linear track light — CCT selectable linear track light
The TRON-N CCT and power selectable LED linear track light for shops is a DIP-switch power selectable LED track light VUE-D 650 concept adapted to a narrow linear form: DIP 20-40W and 3000/4000/6000K selectable from one housing and 8mm W50 narrow in 2-5ft lengths from the LED Linear Light range for shops.
Delivering up to 6600lm at 170lm/W with CRI Ra>80/90, UGR<22, this ultra slim 8mm TRON-W linear track light sibling shares the same shop, showroom and office track, while the linkable LINA-K linear light for continuous runs covers end-to-end rows; the wattage selectable linear track light lets distributors stock one SKU for nine power-CCT combos and adjust on site.
- 20W-40W DIP adjustable, up to 6600lm
- 170lm/w efficacy, CRI Ra>80/90
- Only 8mm thick, W50 profile, 2ft–5ft lengths
- 4-wire 3-phase track adapter, White/Black
Explore TRON-N Selectable Linear Track Light
One wattage selectable linear track light and CCT selectable linear track light — one SKU, nine combos
The TRON-N CCT and power selectable LED linear track light for shops packs DIP 20-40W and 3000/4000/6000K selectable CCT into one 8mm W50 housing. This TRON-N selectable linear light delivers up to 6600lm at 170lm/W in 2-5ft lengths — stock one wattage selectable linear track light instead of nine fixed SKUs.
DIP Selectable 20-40W — Wattage Selectable
One wattage selectable linear track light replaces three fixed wattages
DIP switch sets 20W / 36W / 40W on site — no driver swap, no reorder. This wattage selectable linear track light stocks one TRON-N housing for 2ft, 4ft and 5ft bays.
- Field DIP 20-40W — adjust to lux needs after install
- One TRON-N selectable linear light instead of three fixed SKUs
- 170lm/W, 6600lm max — energy efficient at any wattage
- 2ft L600 / 4ft L1200 / 5ft L1500, same 8mm W50 narrow housing
CCT Selectable 3000/4000/6000K — TRON-N Colors
CCT selectable linear track light with optional fresh-food spectra
Switch 3000K warm boutique, 4000K neutral shop or 6000K bright retail — same wattage selectable linear track light housing, plus meat-color on request for supermarket islands.
- CCT selectable linear track light 3000/4000/6000K — no extra SKU
- PMMA lens >90% transmittance, CRI Ra>80/90, 60°/90° optics
- TRON-N selectable linear light — one housing, three ambiances
- Match boutique warmth vs supermarket brightness on site
One SKU 9 Combos — Low Inventory Design
CCT and power selectable LED linear track light for shops cuts stock 89%
3 powers × 3 CCTs = 9 combos from one TRON-N selectable linear light. Distributors stock one code instead of nine, fitters finalize power-CCT after wiring.
- CCT and power selectable LED linear track light for shops — 20-40W & 3000/4000/6000K field set
- One purchase for multiple shops, showrooms and offices — low inventory costs
- 8mm W50 narrow, 4-wire 3-phase track, TRIAC/0-10V/DALI optional
- 5-year warranty, 50000h life — 9-in-1Selectable inventory model
Why TRON-N Selectable Saves Inventory
CCT and power selectable LED linear track light for shops — 3 powers × 3 CCTs = 9 SKUs in one housing
9 Fixed SKUs vs 1 TRON-N Selectable
89% fewer SKUs — distributors need one code not nine. Distributors stocking fixed 20W/36W/40W × 3000/4000/6000K need nine codes. This wattage selectable linear track light covers all nine with one TRON-N selectable linear light — same 170lm/W and 6600lm from one housing.
- Fixed: 9 boxes — reorder when CCT/wattage mismatches site lux
- TRON-N: 1 box — DIP 20-40W & CCT selectable linear track light on site
- Result: one purchase for multiple shops, showrooms and offices
One wattage selectable linear track light covers 20/36/40W × 3000/4000/6000K — nine fixed codes consolidated.
DIP Switch Field Selectable — No Tools
Isolate power, flip DIP 1-2 for wattage and DIP 3-4 for CCT — the CCT selectable linear track light finalizes after lux reading — no return, no extra order. Same TRON-N housing works in 2ft shops and 5ft showrooms.
- DIP 20W → 36W → 40W — wattage selectable linear track light on site
- DIP 3000K → 4000K → 6000K — CCT selectable linear track light on site
- 8mm W50 narrow, 60°/90° optics, 4-wire track, 5-year warranty
Flip DIP 1-2 for wattage, 3-4 for CCT — CCT and power selectable LED linear track light for shops finished on site.
Datasheet
Select a model to view full specifications
| LC-LL1617-2F | |
|---|---|
| Model | LC-LL1617-2 |
| Wattage | 20W |
| Lumen Output | 3300LM |
| Size | L600*W50mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
| LC-LL1617-4F | |
|---|---|
| Model | LC-LL1617-4 |
| Wattage | 36W |
| Lumen Output | 5800lm |
| Size | L1200*W50mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
| LC-LL1617-5F | |
|---|---|
| Model | LC-LL1617-5 |
| Wattage | 40W |
| Lumen Output | 6600lm |
| Size | L1500*W50mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
FAQ
Quick answers about the LL1617 series
3000K, 4000K and 6000K plus meat color on request — this CCT selectable linear track light offers 3000K, 4000K and 6000K selectable by DIP switch, plus special fresh-food meat color on request for supermarket islands. No extra SKU — the same TRON-N selectable linear light switches warm boutique to bright retail on site.
9 combos from one TRON-N housing — the integrated driver with 4-bit DIP lets you set 20W / 36W / 40W and CCT 3000/4000/6000K — 3 powers × 3 CCTs = 9 combos from one TRON-N housing. This wattage selectable linear track light means:
- One light for multiple locations — field DIP instead of three fixed wattages
- Low inventory costs — one TRON-N selectable linear light covers nine shop/showroom/office needs
- Energy efficient — match lux on site instead of over-lighting
Only 8mm thick with narrow W50 profile — the LC-LL1617 body is only 8mm thick (driver excluded) with a narrow W50 profile. The 8mm slim housing sits flush on 4-wire track for low shop ceilings, keeps weight low for easy install and saves transport volume while the DIP-selectable power/CCT handles lux.
TRIAC, 0-10V and DALI on request — yes, in addition to its onboard DIP dimming, LL1617 supports TRIAC, 0-10V and DALI dimming on request, making it fully compatible with most smart lighting infrastructures.

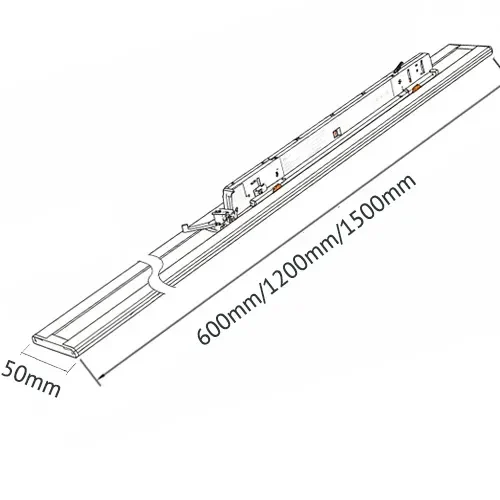

The LC-LL1617 Series covers 2ft–5ft (L600*W50mm 20W, L1200*W50mm 36W, L1500*W50mm 40W) with the same narrow W50 and 8mm profile — one TRON-N selectable linear light housing fits boutique bays and 5ft showroom runs.
This CCT and power selectable LED linear track light for shops suits shops, showrooms, offices, supermarkets and retail corridors needing one SKU to serve warm boutique, neutral office and bright supermarket lux without stocking separate wattage/CCT models.
It comes with a standard 4-wire 3-phase track adapter, compatible with Global Trac (Nordic), Eutrac, Stucchi and most European commercial track systems. Need compatibility with 2wires and 3wires? 2wires 3wires are also OK for this fixture.
As a factory-direct manufacturer, we offer the LL1617 at factory price with no middleman, plus a 5-year warranty, fast delivery and OEM/ODM support for your projects.

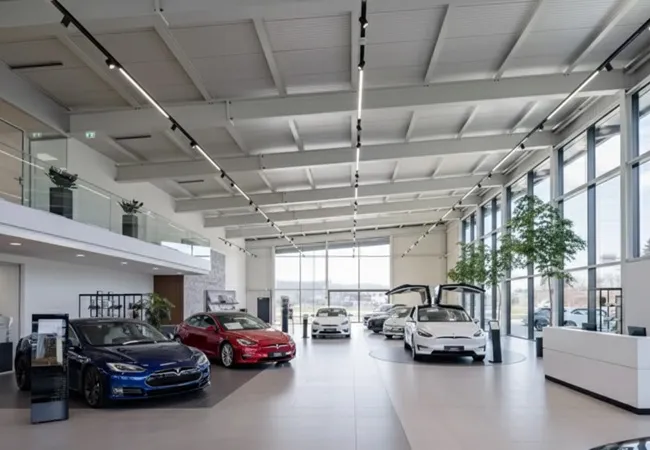

Application
