AMMONIA-RESISTANT TUBULAR LIGHT · SF01 SERIES
DURA-P SF01 Chicken House Light
40W/60W · 5600-8600lm · 140lm/W — sealed tubular light for chicken houses, swine barns and washdown-heavy farm sites.
Home / Product / Led Tri-proof Light / DURA-P
DURA-P SF01 ammonia-resistant tubular light — stainless end caps and mounting clips for chicken houses.
DURA-P SF01 LED Tubular Light
SF01 series · ammonia-resistant · 40W/60W · IP65
The DURA-P SF01 is an ammonia-resistant LED tubular light for chicken houses, sealing its driver and LED board inside an IP65 plastic tube that stands up to ammonia, dust and high-pressure washdowns while delivering 5600-8600lm at 140lm/W.
This poultry farm tri-proof light suits layer and broiler houses, swine barns and parking lots alike: a 120° frosted beam spreads even light over birds and aisles, over-IK09 impact housing survives daily farm knocks, and suspension, ceiling or wall mounting fits new and retrofit houses.
- 40W/60W, 5600/8600lm, 140lm/w efficacy
- IP65 waterproof & dust-proof, over IK09 explosion-proof
- 120° beam, frosted cover, CRI ≥80
- Suspension/ceiling/wall mount, 220-240V AC
Datasheet
Select a model to view full specifications
| LC-SF01-40W-4 | |
|---|---|
| Model | LC-SF01-40W-4 |
| Wattage | 40W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 5600 lm ±5% |
| Size | Ø78×L1200 |
| CRI | ≥80 |
| Beam Angle | 120° |
| Cover | Frosted |
| PF | >0.9 |
| LC-SF01-60W-5 | |
|---|---|
| Model | LC-SF01-60W-5 |
| Wattage | 60W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 8600 lm ±5% |
| Size | Ø85×L1200 |
| CRI | ≥80 |
| Beam Angle | 120° |
| Cover | Frosted |
| PF | >0.9 |
Why DURA-P Survives Chicken Houses
Sealed against ammonia, dust and washdowns
Sealed plastic tube: ammonia, dust and washdown jets stop at the seal line
DURA-P SF01 Sealed Tube Against Ammonia and Moisture
Sealed plastic tube with silicone rings and PG waterproof gland leaves ammonia no way in — ordinary tubes fade fast in poultry air: ammonia corrodes drivers and sockets, dust cakes onto lenses, and the pressure washer between flocks finishes the job. The SF01 answers with a sealed plastic tube — silicone rings at both ends, a PG waterproof cable gland and stainless mounting clips leave ammonia and moisture no way in, so this poultry farm tri-proof light keeps working where home-grade tubes fail.
The seal is only half the story. A 140lm/W engine turns 40W into 5600lm and 60W into 8600lm through a 120° frosted cover that spreads glare-free light over birds instead of glaring into their eyes, roughly halving lighting energy against the old fluorescent tubes it replaces. For oily, solvent-heavy workshops rather than livestock air, see the FORT-A linear high bay for oily factories in the same protection family — and for bathrooms and corridors that need a compact wall or ceiling fitting, the AQUA-D waterproof bulkhead for bathrooms covers those rooms.
Choose tubular for the house and match every other room to its fitting: this page covers the DURA-P chicken house light for washdown zones, while the broader LED tri-proof light series for harsh sites lists every protection-rated fitting in one place.
| Model | Form | Best for |
|---|---|---|
| DURA-P SF01 | Sealed tubular, 40/60W | Chicken, swine and washdown houses |
| FORT-A | Linear high bay, tempered glass | Oily factories and warehouses |
| AQUA-D | Round bulkhead, sensor options | Bathrooms, corridors and balconies |
Size the Light to the House
40W or 60W, and three ways to hang it
SF01 40W and 60W Choices for Chicken Houses
Match wattage to house and mounting height.

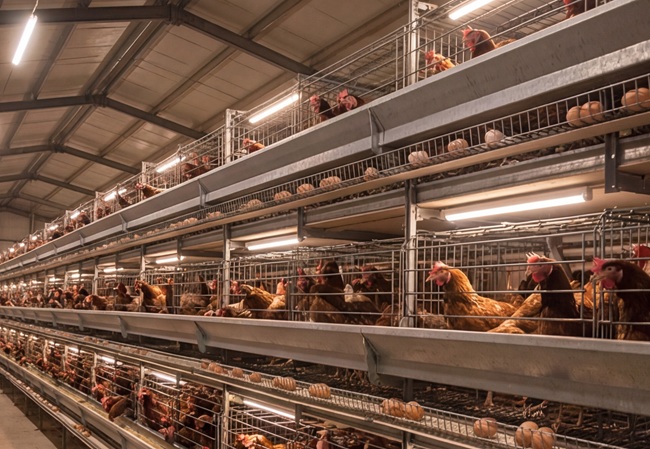

- 40W tube 5600lm Ø78×L1200 — layer tiers, chick areas and low 2.5–3m ceilings
- 60W tube 8600lm Ø85×L1200 — broiler halls and wide aisles at 3–4m
- 140lm/W with PF >0.9 — efficient and grid-friendly for farm rows
This IP65 waterproof tubular light hangs in continuous rows, so add tubes — not bigger tubes — when the house gets longer.
Three mounts — suspension, ceiling and wall — with accessories in the box. Mount it three ways — suspension wires for open halls, ceiling brackets for low sheds, wall arms over side aisles — with accessories in the box and video guidance for the crew.

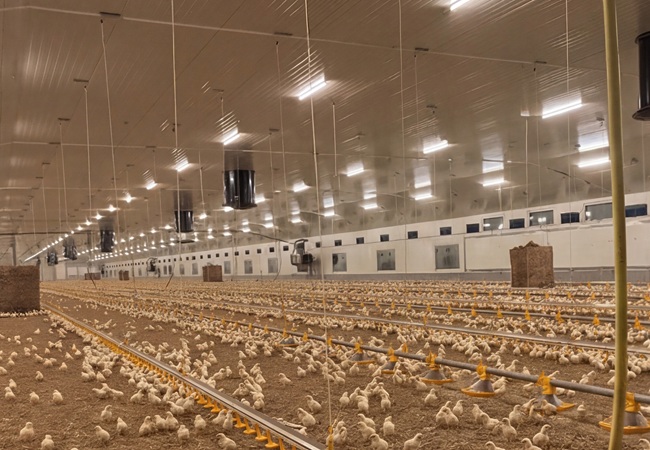

- Suspension wires for open halls — even rows over wide broiler floors
- Ceiling brackets for low sheds — fast fix to low farm ceilings
- Wall arms over side aisles — lights aisle without blocking equipment
Layers need 14–16 hours of steady light for egg output while broilers follow step-down programs, so TRIAC and 0-10V standard plus DALI on request ties the house into the farm controller under the official DALI Alliance lighting control standard.
Three mounts, two wattages — rows extend as the house gets longer
FAQ
Tough tri-proof answers for harsh environments
Sealed plastic tube with silicone rings and PG gland holds IP65 — poultry litter releases ammonia that corrodes drivers, sockets and steel clips of home-grade tubes, while dust and moisture finish them off. The SF01 seals everything inside a plastic tube with silicone rings at both ends, a PG waterproof cable gland and stainless clips, carrying a full IP65 rating — so ammonia, dust and water never reach the electronics.
IP65 survives pressure washdowns between flocks — yes, that is what it is built for. IP65 means water jets from any direction cannot get in, so the standard turn-around washdown is safe. Stainless clips will not rust, the frosted cover wipes clean, and the over-IK09 housing takes the odd knock from equipment. Do not submerge it; IP65 covers jets, not immersion.
TRIAC and 0-10V standard plus DALI on request for layer and broiler programs — yes, layers hold 14–16 hours of steady light for egg output while broilers follow step-down schedules, and the SF01 follows both with TRIAC and 0-10V dimming as standard plus DALI on request, so the house can run dawn-dusk curves from the farm controller instead of simple on-off.
40W for tiers and low ceilings, 60W for broiler halls — take the 40W tube (5600lm, Ø78×L1200) for layer tiers, chick areas and ceilings under 3m; take the 60W tube (8600lm, Ø85×L1200) for broiler halls and wide aisles at 3–4m. Both run at 140lm/W with PF >0.9. For long houses, extend the row with more tubes rather than upsizing — send your house dimensions for a free layout.
Three mounts with video guidance and 220-240V AC retrofit wiring — three options: suspension wires, ceiling brackets and wall arms. Mounting accessories ship in the box with step-by-step video guidance, and the 220-240V AC input wires straight into existing farm circuits — no new trunking for retrofits.
Rated 50000 hours on imported chips and ENEC driver — rated life is 50000 hours — years of flock cycles — built on imported LED chips and an ENEC-certified driver that holds output steady through heat, dust and daily dimming curves.
Samples in 7 days, bulk in 15 days with OEM/ODM — samples in 7 days, bulk orders in 15 days. Wattage, tube length and finishing can be customized, and OEM/ODM projects are welcome — send house size and quantity to [email protected] for a fast quotation.
