OUTDOOR · ORB SERIES
ORB SER Oval Halo Landscape Lamp
7W/12W · 2700K/4000K · Ra80 — oval halo landscape lamp for Zen gardens, patios and walkways.
Home / Outdoor Luminaires / Free-Form Garden Light / ORB SER
ORB halo ring standing on a lawn — sculpture by day, soft glowing ring by night
ORB Halo Ring Landscape Light
ORB SER · 7W halo ring φ300-600mm · 12W arch 300-800mm · Ra80
The ORB is a halo ring landscape light for gardens that is meant to be looked at, not just to light with: a glowing ring or arch in a black aluminum profile that stands on lawns, gravel and patios as a sculpture by day and a soft halo after dark.
- SMD waterproof strips in premium aluminum profile
- 7W halo φ300–φ600mm + 12W arch 300–800mm, 8 models in 2 families
- 2700K/4000K, Ra80, 100–240V non-dimmable
- Die-casting AL+PC, Black/Gray finish for Zen gardens and patios
Datasheet
ORB SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Black/Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5213030 12K3/K4 | φ300MM | Ra80 | 2700K/4000K | 7W |
| 5214040 12K3/K4 | φ400MM | Ra80 | 2700K/4000K | 7W |
| 5215050 12K3/K4 | φ500MM | Ra80 | 2700K/4000K | 7W |
| 5216060 12K3/K4 | φ600MM | Ra80 | 2700K/4000K | 7W |
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Black/Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5222330 12K3/K4 | 230*70*300MM | Ra80 | 2700K/4000K | 12W |
| 5222340 12K3/K4 | 230*70*400MM | Ra80 | 2700K/4000K | 12W |
| 5222360 12K3/K4 | 230*70*600MM | Ra80 | 2700K/4000K | 12W |
| 5222380 12K3/K4 | 230*70*800MM | Ra80 | 2700K/4000K | 12W |
Why ORB: The Ring People Look At
A sculptural glow for Zen gardens, patios and art walkways
ORB Halo Ring Sculpture for Zen Gardens
Most garden lights are tools for seeing the path; the ORB ring garden art landscape lamp is an object for seeing itself. A 7W halo ring from φ300mm to φ600mm stands upright on a lawn or in raked gravel like a moon gate in miniature, giving a Zen garden one calm focal point instead of a row of bright dots. It belongs to the full outdoor luminaires range for garden projects, but it plays the opposite role to every bollard in that range.
ORB Ring and Arch Placement for Patios

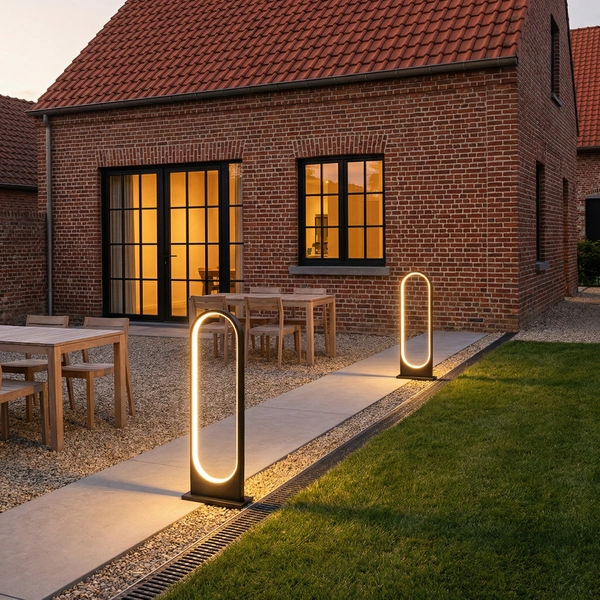

On patios and along artistic walkways, use the two forms as a pair: plant a full ORB-SR ring where guests pause — beside seating, at a gravel clearing — and flank the walking line with 12W ORB-SS arches that read like small glowing doorways. Where the path itself needs even step-by-step guidance, add the PORT SER arched COB pathway bollard for the walking line and keep ORB as the art node; for low lawn accents between the rings, the GOOS-S sculptural lawn accent light matches the same sculptural language at a smaller scale.
- ORB-SR ring — focal sculpture for lawns and gravel beds where guests stop;
- ORB-SS arch — gate of light flanking walkways and patio entries;
- MUSH-D bollard — downward wash for even step-by-step path lighting.
If the brief is pure path lighting, see the MUSH-D dome mushroom path bollard — its downward 18W wash is built to cover walking ground; if the garden needs a sculptural glow that photographs after dark, stay with ORB. Warm 2700K keeps stone and planting honey-toned for evening seating, while 4000K suits commercial courtyards where the ring must read crisp against concrete.

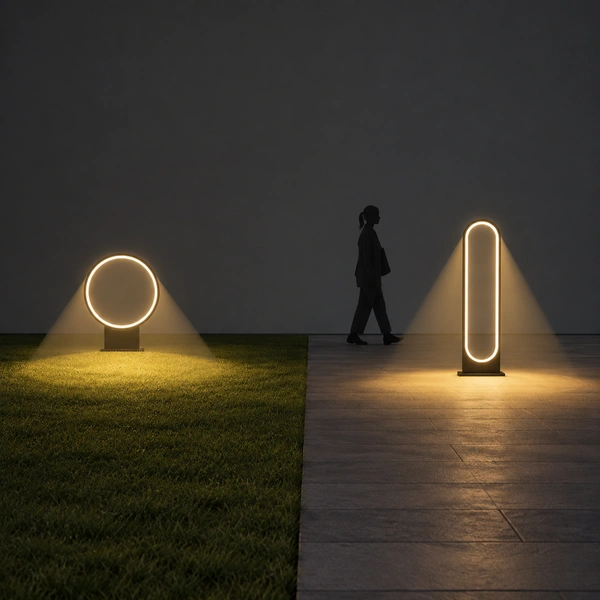

Ring stands as the focal sculpture — arch frames the walking line
| Model | Form | Light effect | Best for |
|---|---|---|---|
| ORB-SR | Full ring, φ300-600mm, 7W | 360° glowing halo, decorative | Lawn and gravel focal points |
| ORB-SS | Arch, 300-800mm tall, 12W | Gate of light over the path | Walkway sides, patio entries |
| MUSH-D | Mushroom bollard post | Downward wash onto the ground | Even step-by-step path lighting |
FAQ
Halo landscape light answers for garden projects
Ordinary bollards throw light down at the ground; the ORB glows as a full ring or arch so the fixture itself is the view. SMD waterproof strips run inside a die-cast AL+PC aluminum profile in Black or Gray, giving a seamless halo with no visible dots. The ORB ships exactly this sculptural range as a 7W halo ring and a 12W arch.
Choose by placement, not by brightness. The ORB-SR full ring (φ300-600mm, 7W) is a single focal sculpture for lawns, gravel beds and patio corners where guests stop and look. The ORB-SS arch (300-800mm tall, 12W) frames movement — pair them along both sides of a walkway or at a patio entry. The ORB covers both roles in one series, so the 7W ring and 12W arch mix in a single garden.
On its own, no — and it is not designed to be. Like the small halo accent fixtures on the market (typically 1-2W marker glows), the ORB is an accent layer: it marks the route and sets the mood, while a dedicated path or bollard light delivers the walking illuminance. Plan ORB rings as focal points every few meters with generous breathing room, and let path lights handle even ground coverage. The ORB 7W ring and 12W arch are sized exactly for this accent-plus-path layered layout.
Warm 2700K is the default for gardens. Independent planting guides converge on 2700-3000K because warm light flatters stone, timber and foliage around evening seating. Choose 4000K only where the ring must read crisp and neutral — commercial courtyards, hotel entries or modern concrete patios. Both CCTs ship at Ra80, so tell us the ORB 7W or 12W model plus the setting and we match the CCT before shipment.
Give each ring room to be seen: one strong piece per view. With open viewing distance of roughly one to two times its size, and stagger pieces along a walkway instead of lining them opposite each other. Path-marker spacing of 6-10 feet suits the walking line; sculpture pieces want wider gaps so each halo reads alone at night. The ORB 7W φ300-600mm rings and 12W 300-800mm arches scale to both rhythms in a single project.
Yes for normal garden weather: the light comes from SMD waterproof strips sealed in an aluminum profile. And the body is die-cast aluminum with PC diffuser in Black or Gray for year-round lawns, patios and walkways on 100-240V. It is not a submersible pond light, so keep bases out of standing water and aim irrigation spray away from the fixture. The ORB 7W and 12W families are both built to this same outdoor garden specification.
