OUTDOOR · BAM SERIES
BAM SER Precision Directional Spot Bollard
7W / 7*2W · 2700K/4000K · Ra80 — precision directional spot bollard for estates, entrances and architectural pathways.
Home / Outdoor Luminaires / Free-Form Garden Light / BAM SER
BAM directional spot bollard throwing a precision accent beam at the feature, not the path

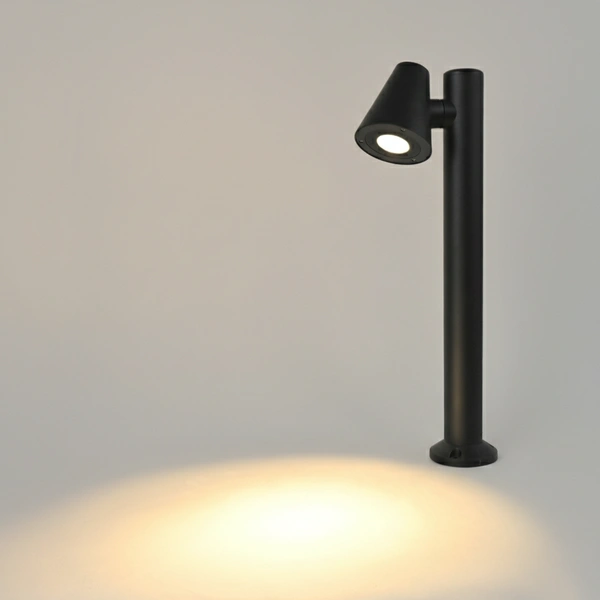

BAM Directional Spot Bollard Light
BAM-SC 7W single-head · BAM-SD 7x2W twin-head · COB 2011
The BAM is a directional LED spot bollard for entrances that throws a precision accent beam at trees, signs and building columns instead of washing the path.
As a directional spot pathway bollard it ships as the BAM-SC exterior spot light with a 7W single head and 7x2W twin-head for two-way accent; eight models cover 400 to 1000mm at 2700K/4000K Ra80 in Sand Black or Sand Gray die-cast aluminum on 100-240V.
- COB light source, high-performance 2011 technology
- 7W / 7*2W, heights 400mm–1000mm, 8 models in 2 families
- 2700K/4000K, Ra80, precision directional spot glow
- Die-casting AL+PC, 100-240V, Sand Black/Sand Gray
Datasheet
BAM SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | COB |
| Finishing | Sand Black/Sand Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5312140 12K3/K4 | 215*110*400MM | Ra80 | 2700K/4000K | 7W |
| 5312160 12K3/K4 | 215*110*600MM | Ra80 | 2700K/4000K | 7W |
| 5312180 12K3/K4 | 215*110*800MM | Ra80 | 2700K/4000K | 7W |
| 53121100 12K3/K4 | 215*110*1000MM | Ra80 | 2700K/4000K | 7W |
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | COB |
| Finishing | Sand Black/Sand Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5323240 24K3/K4 | 320*110*400MM | Ra80 | 2700K/4000K | 7*2W |
| 5323260 24K3/K4 | 320*110*600MM | Ra80 | 2700K/4000K | 7*2W |
| 5323280 24K3/K4 | 320*110*800MM | Ra80 | 2700K/4000K | 7*2W |
| 53232100 24K3/K4 | 320*110*1000MM | Ra80 | 2700K/4000K | 7*2W |
Why BAM Spots Instead of Flooding the Path
One directional accent head per feature, not wash across the ground
BAM directional spot height logic for estates
On estates the job is picking targets out of the dark: one oak, one gate pier, one stone. The BAM fires a directional spot at the object from a 400-1000mm stance, so trunks and masonry hold contrast, lawn stays dark. Set 400-600mm heads tight to the target, 800-1000mm where shrubs would block the beam. This accent-first logic lives inside the full outdoor luminaire range for pathways.
- One oak — single tree picked out of the dark with one BAM-SC head
- One gate pier — entrance marker lit by a directional spot, not a wash
- One stone — masonry holds contrast while lawn stays dark
BAM entrance pairing and 3-5m spacing
Entrances read best as a pair: flank a gate with two BAM-SC single heads, or put one BAM-SD twin-head between two signs, one 7W beam per face. Space accents 3-5m apart for overlap without a runway row; 2700K flatters brick, 4000K suits stone and signage. For safe footing on open tarmac, use the SEMI heavy-duty pathway flood bollard: for area flood see SEMI, if accent spot see BAM.
BAM architectural pathway spotting for columns and walls
Along architectural pathways the BAM grazes columns, fins and walls instead of spilling across the walkway: aim each head across the path at the wall, spill-free for walkers. Twin-head BAM-SD suits corners sharing one footing; single-head BAM-SC suits straight runs. For uniform wash with no feature to hit, use the VOID minimalist garden path lamp: for area flood see VOID, if accent spot see BAM.

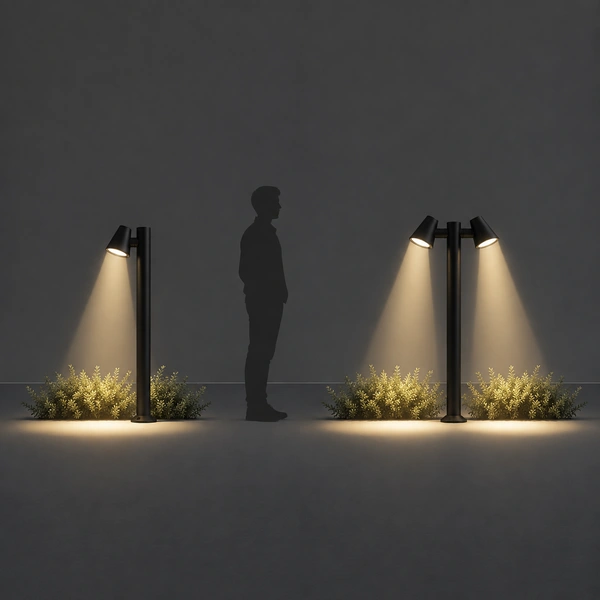

Single-side BAM-SC hits one feature; twin-head BAM-SD marks two faces from one footing
| Model | Beam | Power | Best for |
|---|---|---|---|
| BAM-SC | Single-side directional spot | 7W | One tree, sign or column from one footing |
| BAM-SD | Twin-head two-way spot | 7x2W, 14W total | Gate pairs, corners and two faces from one footing |
| Flood bollards | 180°/360° area flood wash | Path wash output | Even footing light with no feature target |
FAQ
Directional spot bollard answers for entrance projects
Choose by faces, not by brightness. One visible face — a single tree, one sign, one column — wants the 7W BAM-SC single-head aimed at that target. Two faces sharing one footing — a gate pair, a corner, two signs back to back — want the 7x2W BAM-SD twin-head so each side gets its own 7W beam without a second foundation. The BAM ships exactly this choice as 7W single-head BAM-SC or 14W twin-head BAM-SD across 400-1000mm.
A flood spreads 180°/360° wash so feet see the ground; BAM concentrates a narrow directional spot so eyes see the feature. Flood suits open paths with nothing to highlight, spot suits trees, signs and columns that must stand out of the dark. Rule of thumb: for area flood see SEMI or VOID, if accent spot see BAM. The BAM holds the spot side of that split as 7W single-head or 14W twin-head heads.
Start accents 3-5m apart so light pools overlap without dark gaps or a runway row. Then tune to the feature: tighter at gates where contrast matters, wider along planted drives where each tree is its own moment. Match height to the obstacle — 400-600mm tight to low signs, 800-1000mm where shrubs would block a short head. The BAM covers that whole band as 7W BAM-SC or 14W BAM-SD, all at 2700K/4000K Ra80.
Hold 2700K warm white against brick, timber and warm planting where hospitality tone matters. Take 4000K neutral against pale stone, signage text and commercial forecourts where legibility matters. Both ship at Ra80, so bark texture and carved letters stay readable either way. Every BAM head — 7W single or 14W twin — offers the same 2700K/4000K choice, so one estate can mix tones without mixing fixtures.
No, when aimed across the walking line at the feature instead of along the path. The directional head throws its beam sideways at the tree, sign or column, so walkers pass through soft spill while the hot spot lands on the target — unlike 360° flood that faces every eye at once. The BAM keeps that aimed control in both forms: 7W single-side BAM-SC or 14W two-way BAM-SD.
Yes for normal landscape service: the die-casting AL+PC body in Sand Black or Sand Gray stands up to estate and entrance weather, and the wide 100-240V input drops straight onto site mains with no extra driver. Heads are non-dimmable, so plan tone and aiming up front rather than dimming later. That outdoor-ready build ships on every BAM unit, 7W BAM-SC single-head or 14W BAM-SD twin-head.
Image Gallery

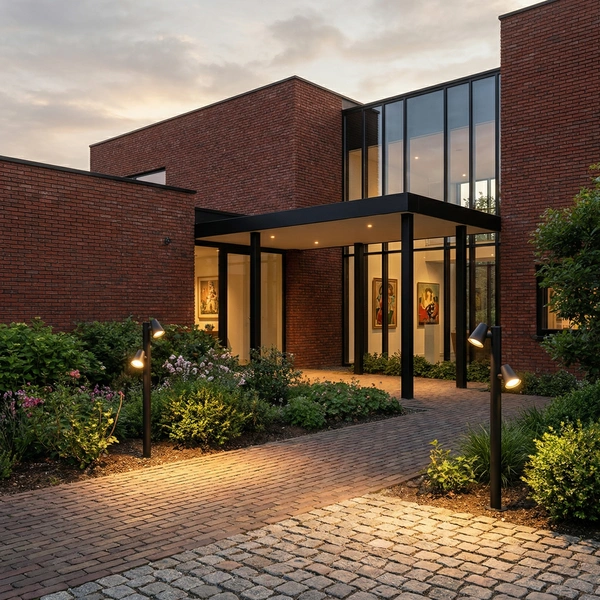

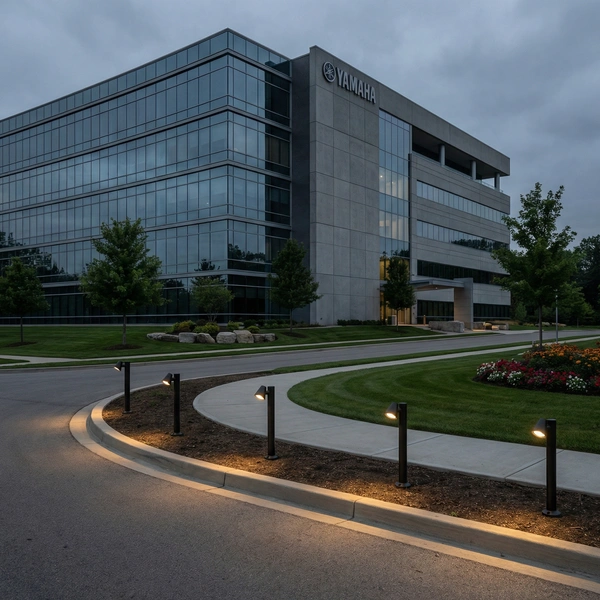

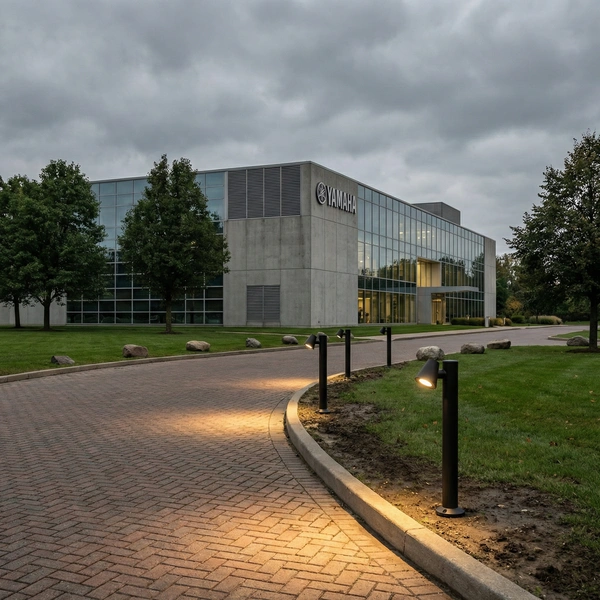

BAM SER in real exterior projects
